0404 RGB LED Mini 1010 RGB Standard LED

Super bright 0404 mini RGB LED(1010 RGB LED)

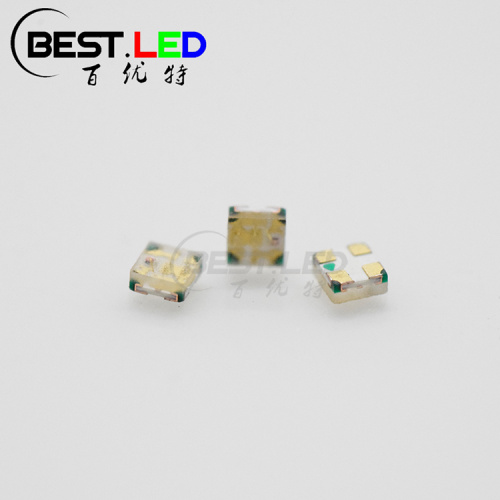

If you looking for a small mini RGB LED for your project, please check this 1010RGB. The size of this RGB LED is 1.0*1.0*0.4mm, which is small enough to put with any small PCB board or kinds of different project. Compare with 1010-3-03-RGB, this 1010RGB will got higher brightness. On the other hand, this 1010 RGB LED have a white bottom color LED frame, which can emits more brightness than black LED frame. Look on the picture, this 1010 RGB LED will got 4 pins on the bottom of LED, these pins will be able to connect the red, green and blue color into the circuit. You can control the color by this pins. Do you need some mini RGB LED for your project? Contact us know~

1010（4040） RGB LED SMD LED Size:

*If this size of RGB LED cannot meet your required, 3528 RGB LED, 5050 RGB LED, 2121 RGB LED or 1515 RGB LED are also available;

Features:

• Red, green and blue LED three chip inside;
• Available in tape and reel;
• Lens type: Diffused;
• High relability, hig radiation intensity and easy to solder leads;
• Chip Demension: 205um, 205um, 205um;

Absolute Maximum Ratings(Tc=25℃)

*Pulse Forward current confition: Duty 1% and pulse width=10us.

*Soldering confition: Soldering condition must be completed with 3 seconds at 260℃

Electrucal Optical Characteristics(Tc=25℃)

Main applications:

Backlight, Indicato light;

Industrial controls;

Medical equipment and communications equipment;

Security electronics;

Handling Precautions:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
