RGB LED 1010 Standard LED Mini SMD LED

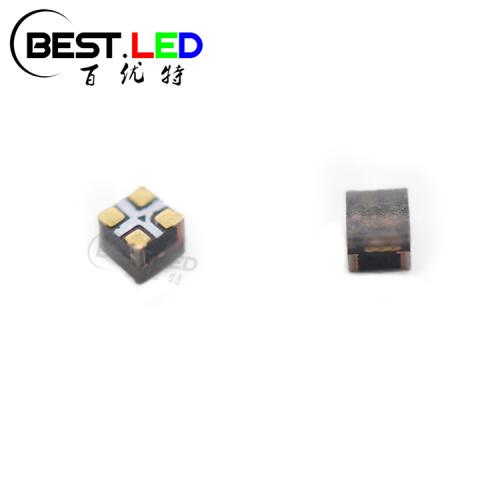

1010 Mini RGB LED for LED Display

A completed LED display are made of tons of mini RGB LED inside. For this 1010 mini RGB LED, people will widely use it in black color LED display, during the night, the black bottom color will give prominence to how bright and how colorful this LED will be. It will be so bright and colorful when you light it up in the LED dispaly. It will just show the color as what you need. Of course we can also use this 1010 RGB LED in other project. Such as LED indicator, LED RGB panel light or LED toys for kids ect. Becuase this RGB LED got a small size, it will be much more easy to fit different PCB board.

*If this size of RGB LED cannot meet your required, 3528 RGB LED, 5050 RGB LED, 2121 RGB LED or 1515 RGB LED are also available;

Features:

• Red, green and blue LED three chip inside;
• Available in tape and reel;
• Lens type: Diffused;
• High relability, hig radiation intensity and easy to solder leads;
• Chip Demension: 205um, 205um, 205um;

Absolute Maximum Ratings(Tc=25℃)

*Pulse Forward current confition: Duty 1% and pulse width=10us.

*Soldering confition: Soldering condition must be completed with 3 seconds at 260℃

Electrucal Optical Characteristics(Tc=25℃)

Main applications:

Backlight, Indicato light;

Industrial controls;

Medical equipment and communications equipment;

Security electronics;

Handling Precautions:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
