DM-36RPBL 3650 low rpm small electric brusheless motor with gear reduction

1.Main voltage : 6VDC,12VDC, 24VDC

2.Typical applications: Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring, Smart home applicances, Robots-

3. Round Gearbox size: 36mmφ*L

4. Torque: 1kgf.cm

5. Direction: CW, CCW

6. Voltage, speed, and shaft can be customized based

Appearance size:

Gearbox Data :

Number of stages	1	2	3	4	5
Reduction ratio	3.7,5.2	14,19,27	51,71, 100,139	189,264, 369,515,721	977,1367,1910, 2671,3736
Gearbox length [L"mm	26.5	34.5	42.5	50.5	58.5
Breaking torque(kgf.cm)	10	18	40	50	60
Gearbox efficiency	90%	81%	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-BL3650-012-3000	12	≤170	3000	≤775	2400	100	2.5	≥510	≥2340
DM-BL3650-012-4500	12	≤260	4500	≤1160	3300	150	5.1	≥768	≥3520
DM-BL3650-012-6000	12	≤340	6000	≤1550	4500	200	9.2	≥1020	≥4680
DM-BL3650-024-3000	24	≤140	3000	≤600	2400	100	2.5	≥510	≥1200
DM-BL3650-024-4500	24	≤210	4500	≤900	3300	150	5.1	≥768	≥1760
DM-BL3650-024-6000	24	≤280	6000	≤1200	4500	200	9.2	≥1020	≥2400

Gear Motor Data:

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-36RPBL36500093000-264K	9.0	0.15	11.3	0.46	8.3	13.0	1.12	49.0	1.32
DM-36RPBL36500126000-3.7K	12.0	0.29	1577.6	1.47	1303.5	0.83	11.04	4.75	7.06
DM-36RPBL36500128000-369K	12.0	0.44	22.0	1.84	17.1	41.0	7.24	186.0	6.76
DM-36RPBL36500246000-51K	24.0	0.16	113.9	0.78	97.5	9.2	9.27	64.3	4.47

Curve Chart :

Model: DM-36RPBL36500093000-264K

Model:DM-36RPBL36500128000-369K

Remark

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects

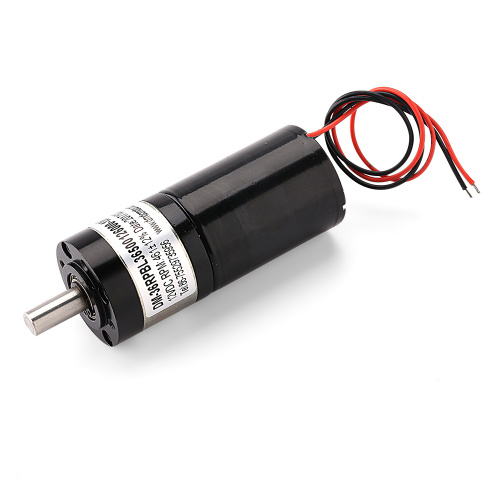

Product picture

Office

Workshop

Machine and Testing Equipment

Delivery

About us

Shenzhen Dongming Motor Co., Ltd. is expecialized in micro dc motors and dc gear motors. With 10-year-experience and a professional R & D team, Dongming Motor stands out in gear motor market in China. We have successfully worked out over 100 series of micro DC motors. Our products are widely used in household appliances, audio/video products, office equipment, health-care and beauty-care facilities, medical appliances, high-class toys, electronic tools, electronic commodity, automotive parts and automatic systems.

FAQ

Q: What kind of motors can you provide?
A: We can provide dc motor, dc gear motor including spur gear motor, planetary gear motor, worm gear motor; voltage, free load speed, rated speed, rated torque and size can be customized;
Q: What is the delivery time for samples and mass production?
A: For samples if we don't have material stock, delivery date 15-20days; if with stock, produce date can be 3-5days;
For mass production, normally arrange under schedule, the ealier your order is, the faster we will produce; in slack season delivery date is 25 dasy; busy season we will need more than 30 days if quantity is large;
Q: What spec. shall I provide before sample making?
A: A good questions! Pls tell us spec. of voltage, free-load speed, load speed, rated torque, size spec. or other special requirement; we will provide our best recommend to you;
Q: Is there testing report or motor specification when I get the sample?
A: Yes, we provide the testing report and specification in PDF file after sample is ready;
