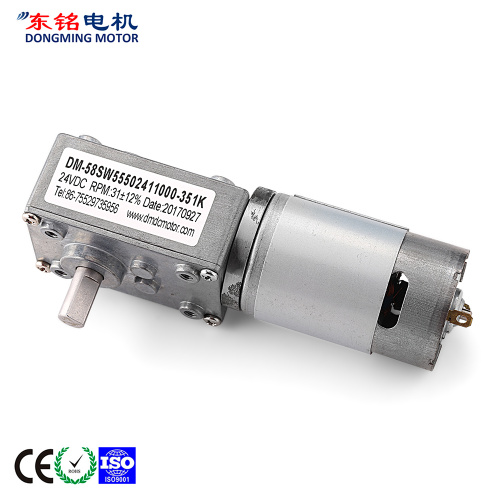

DM-58SW555 DC WORM GEAR MOTOR

Another type 58mm Dc Worm Gear motor is DM-58SW555 Worm Gear Dc Motor. This Worm Gear Motor has higher torque than that of DM-58SW31ZY,

but the sound perfomance is not as good as DM-58SW31ZY Worm Gear Motor 12v.

58mm dc worm gear motor contains DM-58SW31ZY dc worm gear motor and DM-58SW555 dc worm gear motor.

Since the worm gearbox and the DM-555 dc motor has size differences, when we are using this motor, we need to add a special connecting plate.

24v dc worm gear motor

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Game machine, Vending machine, Window power

supply, Office equipment, Household appliance,

Automation equipment.

12vdc right angle gear motor

Gearbox Data :

Number of stages	3	4
Reduction ratio	49.74.101.218.290	505.634
Gearbox length [L"mm	34	34
Breaking torque(kgf.cm)	15	35
Gearbox efficiency	40%	36%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-555-012-3000	12	≤140	3000	≤800	2200	150	3.4	480	2400
DM-555-012-4500	12	≤220	4500	≤1200	3300	220	7.4	700	3840
DM-555-012-6000	12	≤350	6000	≤2000	4500	300	13.8	960	4800
DM-555-024-3000	24	≤70	3000	≤400	2200	150	3.4	480	1280
DM-555-024-4500	24	≤110	4500	≤600	3300	220	7.4	700	2400
DM-555-024-6000	24	≤180	6000	≤1000	4500	300	13.8	960	3200

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-58SW5550246500-105K	24	0.351	60	1.332	53	3.7	11	78	8.517
DM-58SW5550246500-290K	24	0.22	22	1.426	19	5.7	31	240	3.659

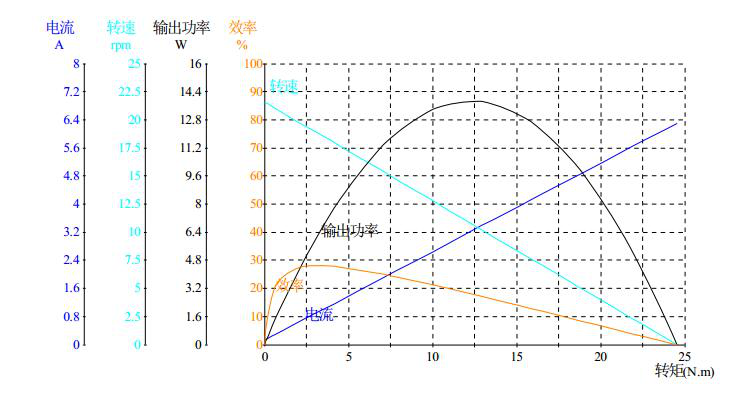

Curve Chart :

Model: DM-58SW5550246500-105K

DM-58SW555-2

Model: DM-58SW5550246500-290K

DM-58SW555-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
