dc gear motor high torque 20kg.cm

USD15

5-999 Piece/Pieces
USD8

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

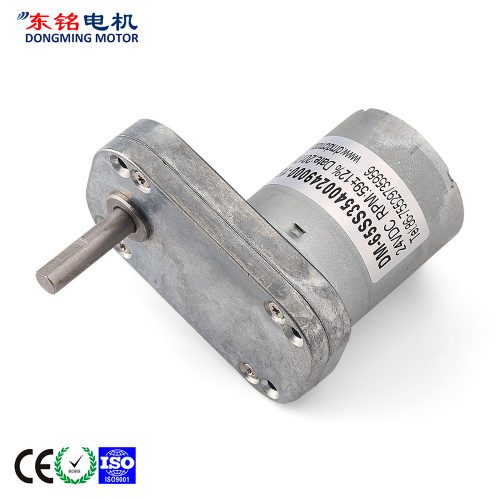

DM-65SS3540 DC SPUR GEAR MOTOR

Within all of our products, 65mm dc spur gear motor is a relatively larger size dc gear motor. However, for all industrial use, this kind of motor is a Micro Gear Motor.

These Micro Gear Motor Dc produce enough torque at load speed. 65mm dc gear motor refers to 65mm dc spur gear motor. 65mm spur gearbox is a square type.

Fingerprints lock has a high requirements about the torque. Standard 12mm door lock motor are not enough. 65mm dc spur gear motor are widely used on this kind of locks.

motor reduction gearbox

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Instrument, Electric tools,Coffee machine,

Vending machine, Massager,Game machine,

Electric window opener,Automation equipment

motors dc

Gearbox Data :

Number of stages	3	4	5
Reduction ratio	40.5.67.5	135.225	450
Gearbox length [L"mm	12	12	12
Breaking torque(kgf.cm)	10	25	35
Gearbox efficiency	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3540-012-3000	12	≤50	3000	≤300	2200	60	1.4	≥240	≥800
DM-3540-012-4500	12	≤70	4500	≤500	3300	70	2.4	≥500	≥2000
DM-3540-012-6000	12	≤100	6000	≤700	4500	80	3.7	≥600	≥2500
DM-3540-024-3000	24	≤25	3000	≤150	2200	60	1.4	≥220	≥500
DM-3540-024-4500	24	≤35	4500	≤250	3300	70	2.4	≥240	≥800
DM-3540-024-6000	24	≤50	6000	≤350	4500	80	3.7	≥550	≥1400

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-65SS35400066000-450K	6.0	0.26	14.0	1.02	10.8	19.00	2.12	83.00	3.58
DM-65SS35400128100-135K	12.0	0.15	57.7	0.66	46.8	6.63	3.18	35.03	2.81
DM-65SS354001210000-135K	12.0	0.19	71.9	1.00	59.5	7.98	4.87	46.18	4.88
DM-65SS35400247000-225K	24.0	0.04	30.7	0.22	25.4	9.00	2.39	53.00	1.06
DM-65SS35400249000-135K	24.0	0.09	63.3	0.45	51.9	10.39	5.53	57.66	2.12
