42mm DC Planetary Gear Motor
  • 42mm DC Planetary Gear Motor
42mm DC Planetary Gear Motor

42mm DC Planetary Gear Motor

  • USD40
    5-999 Piece/Pieces
  • USD20
    ≥1000 Piece/Pieces
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
FOB, CIF
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
35 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Hongkong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Shenzhen,Hongkong
Product Description
Product Description

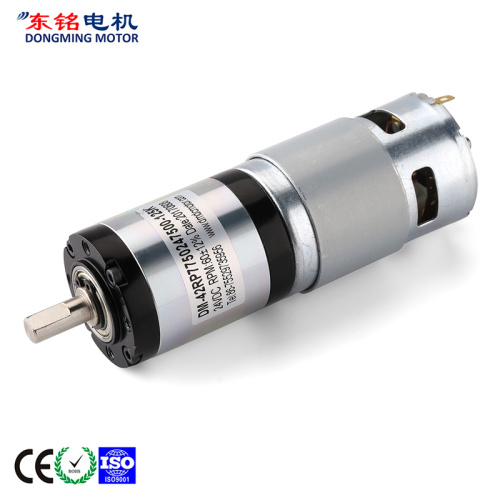

DM-42RP775 DC PLANETARY GEAR MOTOR

42mm dc planetary gear motor is the largest planetary gear motors we produce. Compared with dc spur gear motor,

42mm gear motor can produce higher torque at relatively low speed.

When we refered to 12v High Torque Gear Motor in all our products, this model could be the first option.

24v 42mm planetary gear motor DM-42RP775 is usually applied on some industrial machine and equipments, movable holder and so on.




dc motor encoder


Main voltage : 12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.


dc motor low rpm



Gearbox Data :

Number of stages

1

2

3

4

Reduction ratio

3.7.5

13.18.25

49.67.92.125

181.246.336.458.625

Gearbox length [L"mm

33.5

43.5

53.5

63.5

Breaking torque(kgf.cm)

15

25

50

90

Gearbox efficiency

90%

81%

73%

65%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-775-012-3000

12

≤280

3000

≤1300

2600

450

12

≥3600

≥8600

DM-775-012-4500

12

≤450

4500

≤2100

3800

500

19.5

≥4600

≥16200

DM-775-012-6000

12

≤680

6000

≤3600

5200

600

32

≥5600

≥27200

DM-775-024-3000

24

≤120

3000

≤920

2600

450

12

≥2800

≥5100

DM-775-024-4500

24

≤230

4500

≤1400

3800

500

19.5

≥4100

≥11000

DM-775-024-6000

24

≤350

6000

≤2300

5100

600

31.4

≥5800

≥19000

Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-42RP7750123500-3.7K

12.0

0.40

941.9

2.04

772.1

1.77

14.00

9.80

9.48

DM-42RP7750123600-125K

12.0

0.36

28.1

1.71

23.4

43.98

10.57

261.56

8.44

DM-42RP7750126000-5K

12.0

0.80

1296.5

3.99

1087.1

2.60

29.05

16.11

20.51

DM-42RP7750126000-49K

12.0

0.80

115.6

3.86

97.6

22.40

22.43

143.52

20.37

DM-42RP7750126000-125K

12.0

0.83

46.2

3.55

37.0

52.37

19.90

263.04

14.54

DM-42RP7750127000-3.7K

12.0

1.23

1929.4

5.90

1544.7

2.54

40.28

12.74

24.65

DM-42RP7750127000-125K

12.0

1.01

53.9

5.25

43.9

64.04

28.82

344.17

23.80

DM-42RP7750128000-25K

12.0

1.06

318.0

4.22

249.7

9.90

25.36

46.07

15.77

DM-42RP7750128000-92K

12.0

1.08

87.7

5.09

72.1

39.96

29.56

224.38

23.57

DM-42RP77501212000-3.7K

12.0

3.10

3234.8

13.50

2528.9

3.22

83.67

14.77

50.74

DM-42RP7750242000-336K

24.0

0.08

6.0

0.32

4.7

57.22

2.76

261.33

1.18

DM-42RP7750242100-49K

24.0

0.11

41.7

0.46

32.3

13.55

4.49

60.21

1.67

DM-42RP7750242100-67K

24.0

0.08

29.4

0.39

23.7

17.16

4.18

88.90

1.68

DM-42RP7750243000-18K

24.0

0.16

165.2

0.85

136.3

7.72

10.80

44.19

4.11

DM-42RP7750243000-49K

24.0

0.13

62.2

0.72

53.2

15.81

8.64

109.44

4.22

DM-42RP7750243600-125K

24.0

0.19

29.1

1.16

24.5

57.20

14.40

363.22

6.34

DM-42RP7750245000-27K

24.0

0.21

197.2

1.57

166.7

13.32

22.79

86.06

9.02

DM-42RP7750244500-181K

24.0

0.60

24.6

2.02

19.4

92.40

18.38

433.23

7.31

DM-42RP7750246000-25K

24.0

0.30

228.9

1.93

199.3

14.00

29.17

110.00

12.92

DM-42RP7750247000-13K

24.0

0.46

551.6

3.29

467.2

10.20

48.92

66.66

18.99

DM-42RP7750247000-67K

24.0

0.37

104.1

2.40

90.6

32.98

30.68

254.37

16.00

DM-42RP7750248000-25K

24.0

0.63

330.4

4.07

277.1

19.62

55.82

121.62

21.93

DM-42RP7750248000-92K

24.0

0.51

85.7

3.11

72.3

52.97

39.29

338.17

17.13

DM-42RP77502410000-13.7K

24.0

0.57

729.9

4.57

626.6

10.76

69.21

76.00

28.77



Curve Chart :

Model: DM-42RP7750246000-25K

DM-42RP775-2

Model: DM-42RP7750248000-92K

DM-42RP775-3



Remark :

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,

like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
