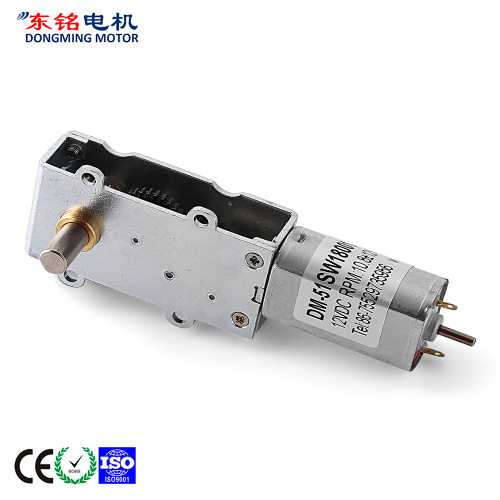

DM-51SW180 DC WORM GEAR MOTOR

51mm DC Worm Gear Motor is a kind of Micro Worm Gear Motor, and it is an opened type gearbox.

This Small Worm Gear Motor sometimes applied on some medical equipment, such as automatic medical box.

For 51mm worm gearbox, it is very special because the gearbox is not closed. This is designed for a medical device customer in original.

Later we found this design is acceptable in the market, so we start to promote.

gear reducer

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Game machine, Vending machine, Window power

supply, Office equipment, Household appliance,

Automation equipment.

gear reduction box

Gearbox Data :

Number of stages	4
Reduction ratio	734
Gearbox length [L"mm	15.4
Breaking torque(kgf.cm)	25
Gearbox efficiency	36%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-180-006-6000	6	≤65	6000	≤260	5100	15	0.8	≥55	≥1150
DM-180-012-6000	12	≤27	6000	≤150	5100	15	0.8	≥55	≥430
DM-180-012-9000	12	≤80	9000	≤260	7000	20	1.4	≥80	≥1000
DM-180-024-9000	24	≤50	9000	≤150	7800	20	1.6	≥80	≥550

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-51SW1800056800-734K	5	0.215	9.2	0.584	6.7	2.9	0.196	10.4	1.572
DM-51SW18001215000-734K	12	0.122	20	0.63	16.4	4	0.701	22.7	2.948

Curve Chart :

Model: DM-51SW1800056800-734K

DM-51SW180-2

Model: DM-51SW18001215000-734K

DM-51SW180-3

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
