33mm Gearhead Motor 12v 60rpm

DM-33RS385 33mm Gearhead Motor 12v 60rpm

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

Appearance size:

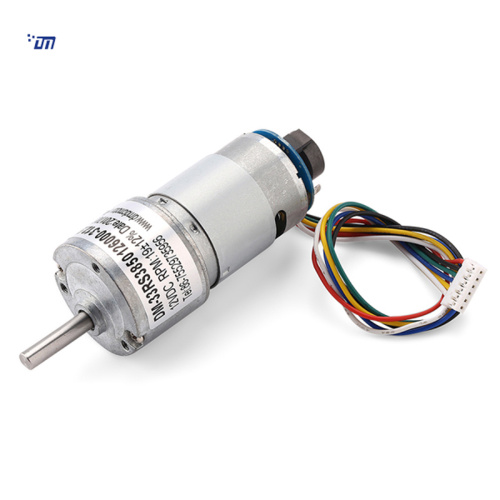

Product picture:

Gearbox Data :

Number of stages	3	4	5	6	7
Reduction ratio	20	50	125	312.5	781
Gearbox length [L"mm	17.7	19.9	22.2	24.4	26.75
Breaking torque(kgf.cm)	10	15	20	24	24
Gearbox efficiency	73%	65%	59%	53%	48%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-385-012-3000	12	≤60	3000	≤150	2200	35	0.8	≥110	≥360
DM-385-012-4500	12	≤70	4500	≤300	3300	55	1.9	≥210	≥960
DM-385-012-6000	12	≤100	6000	≤600	4500	80	3.7	≥280	≥1600
DM-385-024-3000	24	≤28	3000	≤70	2200	35	0.8	≥110	≥160
DM-385-024-4500	24	≤50	4500	≤150	3300	55	1.9	≥180	≥380
DM-385-024-6000	24	≤70	6000	≤300	4500	80	3.7	≥250	≥800

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-33RS3850124500-312.5K	12.0	0.07	15.1	0.21	11.4	6.0	0.75	26.0	0.64
DM-33RS38501217500-50K	12.0	0.41	350.2	2.01	288.0	3.6	10.78	20.5	9.44
DM-33RS3850246000-125K	24.0	0.07	46.7	0.24	37.4	5.5	2.11	27.4	0.96
DM-33RS3850246000-312.5K	24.0	0.05	19.6	0.16	15.3	8.0	1.33	38.0	0.59
DM-33RS3850247400-312.5K	24.0	0.07	23.3	0.29	19.6	11.1	2.24	50.0	1.50

Curve Chart :

Model: DM-33RS3850124500-312.5K



Model: DM-33RS3850246000-312.5K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
