28mm Micro Dc Planetary Gear Motor

USD30

5-999 Piece/Pieces
USD13

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

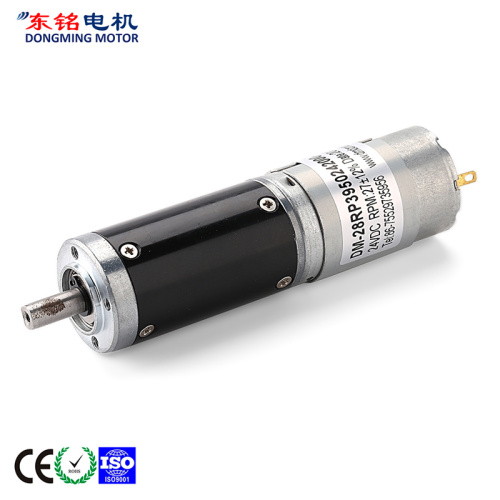

DM-28RP395 DC PLANETARY GEAR MOTOR

28mm Dc Planetary Gear Motor is including DM-28RP395 planet gear motor. For this mini planetary gear motor, it is made up two parts, the 28mm planetary gear motor and the 395 micro dc motor. Both the gearbox and the motor are customized. The bigger gear ratios of the gearbox we choose, the longer the gearbox is, the lower the output speed is. At the same time we can adjust the driving motor speed to meet customer's demand.

dc planetary gear box

Main voltage : 12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.

dc pm motor

Gearbox Data :

Number of stages	1	2	3	4
Reduction ratio	3.7.5.2	14.19.27	51.71.100.139	189.264.369.515.721
Gearbox length [L"mm	27.5	35.5	43.5	51.5
Breaking torque(kgf.cm)	6	10	20	40
Gearbox efficiency	90%	81%	73%	65%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-395-012-3000	12	≤60	3000	≤250	2200	65	1.5	≥208	≥740
DM-395-012-4500	12	≤90	4500	≤430	3300	80	2.7	≥410	≥1700
DM-395-012-6000	12	≤130	6000	≤750	4800	100	4.9	≥510	≥2800
DM-395-024-3000	24	≤40	3000	≤120	2200	65	1.5	≥220	≥380
DM-395-024-4500	24	≤60	4500	≤220	3300	80	2.7	≥360	≥820
DM-395-024-6000	24	≤80	6000	≤380	4800	100	4.9	≥580	≥1700

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-28RP39501211000-27K	12.0	0.44	408.2	2.07	325.8	3.49	11.67	16.92	8.52
DM-28RP39501215000-27K	12.0	0.71	548.1	2.86	444.9	3.75	17.13	19.92	12.12
DM-28RP3950124500-51K	12.0	0.15	88.3	0.50	67.0	3.03	2.08	12.56	1.58
DM-28RP3950124500-139K	12.0	0.10	30.8	0.41	25.0	7.57	1.94	40.22	1.73
DM-28RP3950126000-71K	12.0	0.23	83.7	0.79	65.6	5.50	3.73	25.60	2.80
DM-28RP3950246000-264K	24.0	0.09	24.1	0.31	19.0	10.17	1.99	48.32	1.10
DM-28RP3950247500-100K	24.0	0.19	74.9	0.75	59.1	13.26	8.04	62.70	2.88
