worm drive gearbox with motor

USD50

5-999 Piece/Pieces
USD25

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

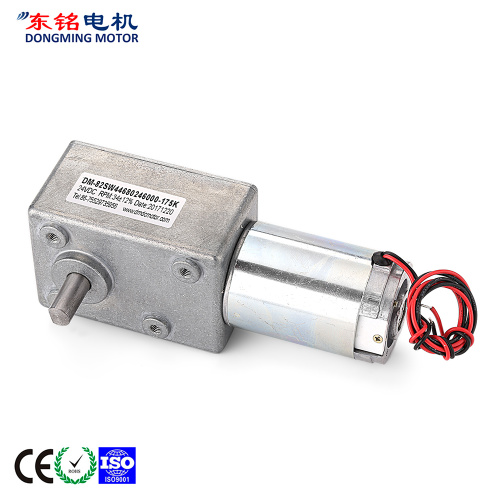

DM-82SW4468 DC WORM GEAR MOTOR

82mm dc worm gear motor is the largest Dc Worm Gear Motor we produce now. This kind of 24v Dc Worm Gear Motor is mainly for some devices

which has a higher torque requirements at a very low speed, such as customer need 7-8Nm torque at 3-5 rpm load speed. 82mm dc worm gear motor could

provide enough torque while at very low speed. At the same time, the gearbox are strong enough to bear the high torque. For example, a cusotomer request

a 6000rpm motor with 862 gear ratio, the output speed is about 7rpm at free load. The rated torque is about 10Nm.

gear reduction motor suppliers

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Game machine, Vending machine, Window power

supply, Office equipment, Household appliance,

Automation equipment.

gear reduction

Gearbox Data :

Number of stages	4	5
Reduction ratio	50, 61, 92	175,405,527,862
Gearbox length [L"mm	44	44
Breaking torque(kgf.cm)	100	150
Gearbox efficiency	36%	32%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-4468-012-3000	12	≤100	3000	≤400	2200	200	4.0	800	1600
DM-4468-012-4500	12	≤150	4500	≤700	3300	250	8.8	1000	2700
DM-4468-012-6000	12	≤220	6000	≤1200	4500	400	16.3	1600	5000
DM-4468-024-3000	24	≤60	3000	≤200	2200	200	4	800	800
DM-4468-024-4500	24	≤90	4500	≤350	3300	250	8.8	1000	1300
DM-4468-024-6000	24	≤130	6000	≤650	4500	400	16.3	1600	2600

Geared Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-82SW44680247000-175K	24	0.5	40	3.3	35	49	50	300	11.57
DM-82SW44680128000-50K	12	1	160	7.4	136	13	18	89	31.35
