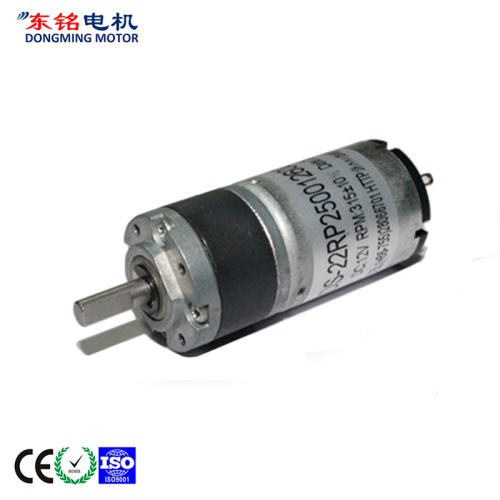

22mm dc planetary gear motor

22mm dc planetary gear motor

22mm dc planetary gear motor

USD20

5-999 Piece/Pieces
USD10

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Basic Info

Place of Origin:	Shenzhen
Productivity:	200000pc per month
Supply Ability:	2000000pc annual
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF
Certificate:	CE, Rohs, FCC
HS Code:	8501109990
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hongkong

Product Description

Product Description

DM-22RP250 DC PLANETARY GEAR MOTOR

For 22mm gear motor, except for 22mm planetary gear motor DM-22RP250, we also have DM-22RP2247 planetary gearbox motor.

These Small Dc Geared Motors are also with planetary gearbox type. 22mm dc planetary gear motor includes DM-22RP180 and DM-22RP250

Dc planetary gear motor. For DM-250 dc motor, the diameter is 22mm and the length is 30.5mm, is one of the best choice for 22mm planetary gearbox.

dc-getriebemotoren 12v

Main voltage : 6VDC.12VDC.24VDC

Typical applications :

Optical instrument, Surveillance cameras, Automated

energy efficiency, Water saving equipment, IC water

card, Toys and gifts, Office equipment, Household

appliance, automation equipment.

electric dc motor gearbox

Gearbox Data :

Number of stages	1	2	3	4	5
Reduction ratio	4.4.75	16.19.22.5	64.76 90.107	256.304.361 428.509	1024.1216.1444 1714.2036.2418
Gearbox length [L"mm	13	16.5	20	23.5	27
Breaking torque(kgf.cm)	2	3	4	5	5
Gearbox efficiency	90%	81%	73%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-250-012-10500	12	≤180	10500	≤750	8950	49	4.5	≥250	≥2600
DM-250-024-16000	24	≤160	16000	≤680	14160	60	8.7	≥390	≥3100

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-22RP2500126000-19K	12	0.127	311.1	0.428	230.9	0.9	2.118	3.5	1.294
DM-22RP25002416000-64K	24	0.139	257.2	0.661	215.7	3	6.837	19	3.368

Curve Chart :

Model: DM-22RP2500126000-19K

DM-22RP250-2

Model: DM-22RP25002416000-64K

Remark :

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,

like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
