13mm mini dc gearmotor
  • 13mm mini dc gearmotor
13mm mini dc gearmotor

13mm mini dc gearmotor

Get Latest Price
Min. Order:
5 Bag/Bags
Min. Order:
5 Bag/Bags
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Hongkong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Shenzhen,Hongkong
Product Description
Product Description

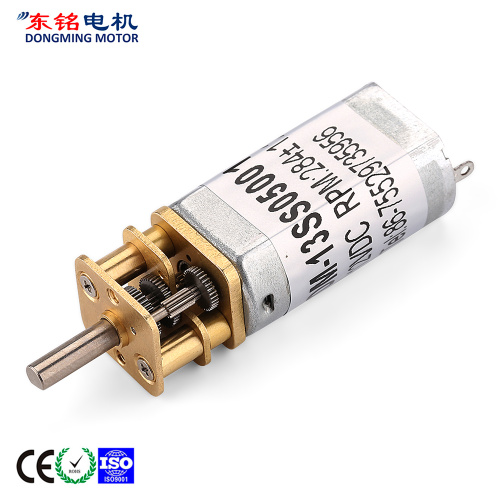

DM-13SS050  DC SPUR GEAR MOTOR

Sometimes customer might request a electronic lock motor, first we try to know better about the requirements after we receive the inquiry.

Mostly we recommend 12mm or 13mm mini dc motor, this miniature gear motor 3v is with conpact design and long working hours.

As the sharing-bicycle are popular recently, like Mobike or OFO, some engineers perfers to use 12mm dc gear motor in their lock.

Howeve, most engineer are tending to use 13mm dc spur gear motor.

This request more space, but could produce a bit more torque, in this way the working life of the lock is expanding.


12 volt electric motor with gearbox


Main voltage : 3VDC.6VDC.12VDC.24VDC

Typical applications :

Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring


12 volt electric motors with gear reduction

Gearbox Data :

Number of stages

2

4

5

Reduction ratio

3.7.10

16.17.20.30.35.                50.63.70.86

115.150.210.250.360

Gearbox length [L"mm

11

11

11

Breaking torque(kgf.cm)

0.6

0.9

2

Gearbox efficiency

81%

65%

59%


Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-050-006-9000

6

≤60

9000

≤260

7500

8

0.6

≥30

≥550

DM-050-006-12000

6

≤70

12000

≤300

9300

10

1.0

≥40

≥1000

DM-050-012-9000

12

≤30

9000

≤130

7500

8

0.6

≥30

≥300

DM-050-012-12000

12

≤50

12000

≤200

10000

10

1.0

≥40

≥600


Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-13SS05000513000-35K

5.00

0.11

354.3

0.45

282.5

0.31

0.90

1.53

1.74

DM-13SS05000513000-63K

5.00

0.10

202.0

0.41

160.6

0.56

0.92

2.73

1.61

DM-13SS05000513000-86K

5.00

0.10

144.6

0.38

117.8

0.66

0.80

3.60

1.69

DM-13SS05000628000-63K

6.00

0.44

416.1

1.43

305.1

0.78

2.44

2.91

4.16

DM-13SS05000630000-86K

6.00

0.28

317.8

1.11

257.3

0.93

2.46

4.90

4.61

DM-13SS05001210500-250K

12.00

0.03

42.1

0.11

32.1

1.31

0.43

5.54

0.36

DM-13SS05001215000-35K

12.00

0.03

424.7

0.13

364.0

0.20

0.73

1.37

0.74

DM-13SS05001216000-35K

12.00

0.06

462.2

0.29

370.5

0.40

1.54

2.03

1.22

DM-13SS05001216000-63K

12.00

0.05

250.4

0.28

204.5

0.75

1.57

4.10

1.29

DM-13SS0500129000-360K

12.00

0.02

25.8

0.08

19.5

1.36

0.27

5.57

0.24


Curve Chart :

Model: DM-13SS05000513000-86K

DM-13SS050-2

Model: DM-13SS05001216000-63K

DM-13SS050-3

Remark:



Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio



Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...



Welcome OEM or ODM projects
