Halogen-Free Pcb circuit boards manufacturing

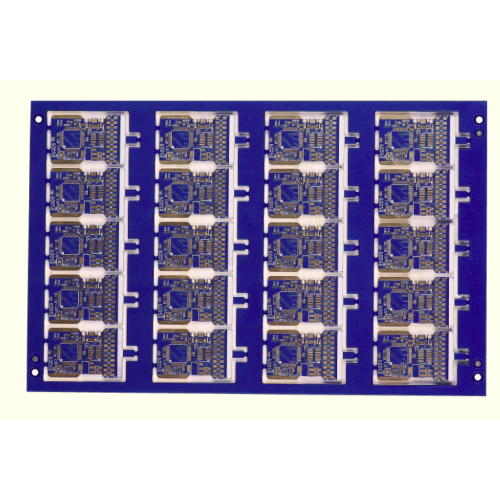

Halogen-Free PCB

Topscom is a professional printed circuit boards manufacturer,include: Pcb Circuit Boards Manufacturing,Multilayer Rigid Pcb,High Frequency Pcb,Aluminum Pcb,Led Pcb,Thick Copper Pcb,High-TG Pcb,Halogen-Free Pcb,HDI Pcb,Flexible Pcb,Rigid-Flexible Pcb,pcb assembly,oem manufacturing,electronic contract manufacturing.

Brief Introduction on Halogen-free PCB

With the increasing demand for environmentally friendly electronic products, halogen-free PCBs are becoming more and more popular because they are constructed of materials that are free of halogen. The dielectric constant, dissipation factor and moisture diffusivity of materials that are described as halogen-free are different from those employed in traditional printed circuit boards. Hence, if the product you're engaged in requires to be environmental-friendly, Halogen-free PCBs will be your ideal choices.

Halogen-free PCB Manufacturing Service from Topscom

As an ISO9001:2000 registered company, we're one of the most renowned PCB manufacturers in China making a concerted effort to fabricate environmentally friendly custom PCBs that alleviate clients' concerns. Commonly used substrates for Halogen-free PCB are S1155 (FR4) and S1165 (FR4), the following table lists some parameters of those substrates:

Material  TG

(DSC, °C)  Td

(Wt, °C)    CTE-z

(ppm/°C)  Td260

(min)         Td288

(min)

S1155(FR4)       140  380  41     60     60

S1165(FR4)       170  360  40     60     15

We offer some advanced features for Halogen-free PCB manufacturing service, please refer to below table for comprehensive capabilities:

Feature    Capability

Quality Grade  Standard IPC 2

Number of Layers    2 - 24layers

Order Quantity         1pc - 10000+pcs

Build Time        2days - 5weeks

Material  S1150G, S1165

Board Size        Min 6*6mm | Max 457*610mm

Board Thickness       0.4mm - 6.5mm

Copper Weight (Finished)         0.5oz - 2.0oz

Min Tracing/Spacing         3mil/3mil

Solder Mask Sides    As per the file

Solder Mask Color   Green, White, Blue, Black, Red, Yellow

Silkscreen Sides        As per the file

Silkscreen Color        White, Black, Yellow

Surface Finish  HASL - Hot Air Solder Leveling

Lead Free HASL - RoHS

ENIG - Electroless Nickle/Immersion Gold - RoHS

Immersion Silver - RoHS

Immersion Tin - RoHS

OSP - Organic Solderability Preservatives - RoHS

Min Annular Ring     4mil

Min Drilling Hole Diameter      6mil

Other Techniques    Gold fingers

Blind/Buried Vias

How to Get a Free Quotation of Halogen-free PCB

Just email your custom PCB design file and requirements to us through this contact form, we'll check your design and give the quotation very soon.

If you have any question on our Halogen-free PCB manufacturing capabilities, or your custom circuit required spec is not listed in the above table, our engineers are available via the same contact form.
