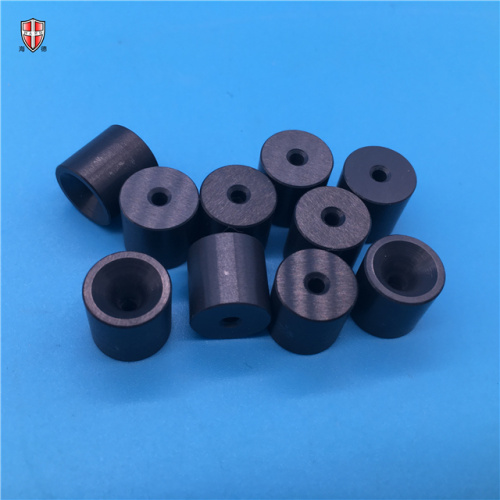

thermal shock resistant silicon nitride ceramic drawing die

thermal shock resistant silicon nitride ceramic drawing die

Reputation depends on quality,  quality comes from Hard!

Silicon Nitride Ceramic:

Sintered silicon nitride has a low thermal expansion coefficient of 2.53×10-6/°C and a thermal conductivity of 18.42 W/m·K, so it has excellent thermal shock resistance, second only to quartz and glass-ceramics. There are experimental reports that the reaction sintered silicon nitride sample with a density of 2500 kg/m3 is cooled from 1200 °C to 20 °C for thousands of cycles, and still does not break. The thermal stability of silicon nitride ceramics is good, and it can be in high temperature. long-term use. It can be used up to 1400 ° C in an oxidizing atmosphere and 1850 ° C in a neutral or reducing atmosphere. Silicon nitride has high mechanical strength. Generally, the flexural strength of hot-pressed products is 500-700 MPa, and the high can reach 1000-1200 MPa. The flexural strength after reaction sintering is 200 MPa, and the high can be 300-400 MPa. Although the room temperature strength of the reaction sintered product is not high, the strength does not decrease at a high temperature of 1200 to 1350 °C. The high temperature creep of silicon nitride is small. For example, the reaction-sintered silicon nitride has a load of 24 MPa at 1200 ° C, and its shape becomes 0.5 % after 1000 h.

properties:

High hardness, high strength, wear resistance, corrosion resistance, high temperature(1200°), good thermal diffusivity, good thermal shock resistance(avoid the temperature changing rapidly), good insulativity, low density. The comprehensive properties are best in most of structure ceramic.

Data Sheet↓

Application industry:

Machinery, electronic, semiconductor, chemical, petroleum, smelt.

Specific application:

Welding shaft, electronic substrate, plunger, nozzle, slide guide, diesel parts, metal molding, shaft wheels etc.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

Products Show

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
