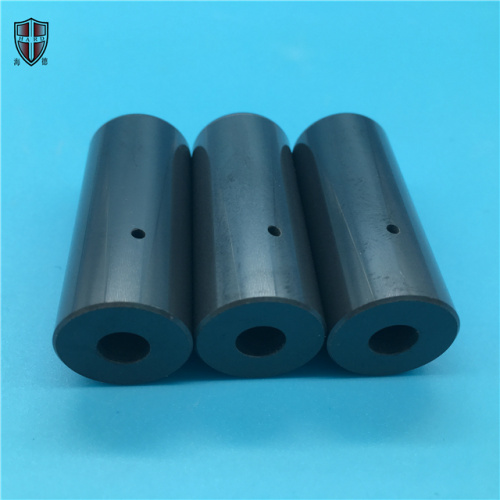

wear resistant Si3N4 ceramic tube pipe sleeve bushing

wear resistant Si3N4 ceramic tube pipe sleeve bushing

Reputation depends on quality,  quality comes from Hard!

Silicon Nitride Ceramic:

Special ceramics, also known as fine ceramics, can be divided into two categories: high-strength, high-temperature resistant and composite structural ceramics and electrical and electronic functional ceramics. By controlling the amount of porogen added and adjusting the particle size of the porogen, the porosity and pore size of the Si3N4 ceramic can be controlled. By adjusting the porogen content, a high porosity and a low dielectric constant can be prepared. Porous Si3N4 ceramics, low dielectric constant value is 2.4297. As the amount of porogen added increases, the porosity of the sample increases, the α-Si3N4 phase in the sample increases after nitriding, the free silicon content decreases, and the sample ε' and The tanδ decreases the particle size of the pore former. The larger the pore size of the porous Si3N4 sintered body after the reaction sintering, the lower the ε' and tanδ of the sample. There are three kinds of crystals in the silicon nitride (Si3N4). The structure is α, β and γ three phases respectively. The α and β phases are the types often appearing in Si3N4, and can be prepared under normal pressure. The γ phase can be synthesized only under high pressure and high temperature, and its hardness can be reached. 35GPa
Heat resistance, under normal pressure, Si3N4 has no melting point. Silicon nitride has wear resistance and heat resistance. It is used as a steam nozzle. It has no obvious damage after 6 months of operation at 800 °C. Other hot-resistant alloy nozzles under the same conditions only Can be used for 1-2 months.

properties:

High hardness, high strength, wear resistance, corrosion resistance, high temperature(1200°), good thermal diffusivity, good thermal shock resistance(avoid the temperature changing rapidly), good insulativity, low density. The comprehensive properties are best in most of structure ceramic.

Data Sheet↓

Application industry:

Machinery, electronic, semiconductor, chemical, petroleum, smelt.

Specific application:

Welding shaft, electronic substrate, plunger, nozzle, slide guide, diesel parts, metal molding, shaft wheels etc.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

Products Show

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
