ceramic substrate hybrid integrated circuit sheet

ceramic substrate hybrid integrated circuit sheet

Reputation depends on quality,  quality comes from Hard!

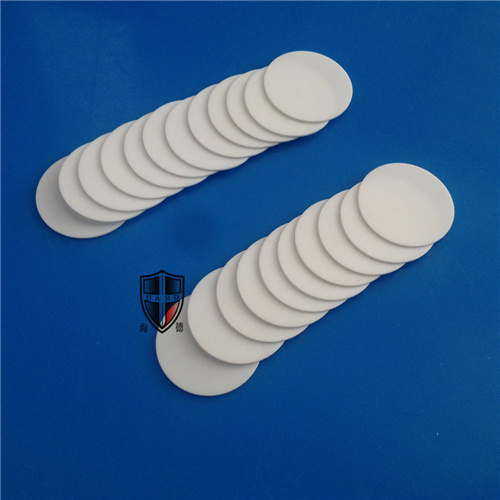

Ceramic Substrate:

Ultra-thin (0.25mm) ceramic substrate can replace BeO, no environmental toxicity problem; Ceramic Substrate Hybrid Integrated Circuit Sheet
◆The current carrying capacity is large, Machinable Ceramic Flange 100A current continuously passes through the 1mm wide and 0.3mm thick copper body, the temperature rise is about 17°C; the 100A current continuously passes through the 2mm wide and 0.3mm thick copper body, and the temperature rise is only about 5°C;The thermal resistance is low, the thermal resistance of Ceramic Substrate Hybrid Integrated Circuit Sheet the 10×10mm ceramic substrate is 0.63mm, the thermal resistance of the ceramic substrate is 0.31K/W, the thermal resistance of the 0.38mm thick ceramic substrate is 0.19K/W, and the thickness of the 0.25mm ceramic substrate The thermal resistance is 0.14K/W. Ceramic Substrate Hybrid Integrated Circuit Sheet. High insulation withstand voltage to ensure personal safety and equipment protection. New packaging and Machinable Ceramic Flange assembly methods can be realized to make the product highly integrated and compact.

Application:

The role of ceramic substrate ceramic substrate according to the field of ceramic substrate application, is divided into HIC (hybrid integrated circuit) ceramic substrate, focusing potentiometer ceramic substrate, laser heating fixing ceramic substrate, chip resistor substrate, Network resistor substrate, etc.; according to different processing methods, ceramic substrates are divided into two types: molded tablets and laser scribe films. The ceramic substrate in the chip resistor substrate is a part of the chip resistor. The upper layer of the substrate is coated with different semiconductor materials, and then copper is plated on both ends for soldering. The biggest advantage of the whole resistor is that the volume can be made very well. small.

Company Information:

Shenzhen Hard Precision Ceramic CO.,Ltd founded in 2007, located in Shenzhen of China. We are a company that integrates development, design, molding, sintering, production and sales of precision ceramic products. After 10 years of development, we have cooperated with more than 2000 customers and 60 universities; Our factory covers an area of 2000 square meters, 50 employees, and annual production value of nearly 20 million. We have a higher visibility and better reputation in the same industry.Our products include ceramic rods, tubes, plates, blocks and precision parts for industrial. We have all-line high precision equipments from ceramic forming, sintering to precision machining. Hope for a wide range of sincere cooperation with customers at home and abroad.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

Products Show

Factory Show

Our Team

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
