highly flat parallel alumina ceramic plain washer gasket

highly flat parallel alumina ceramic plain washer gasket

$3.00

10-99 Piece/Pieces
$1.00

100-999 Piece/Pieces
$0.50

1000-9999 Piece/Pieces
$0.10

≥10000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong,China
Supply Ability:	1,000,000 pcs/Month
Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB
Certificate:	SGS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

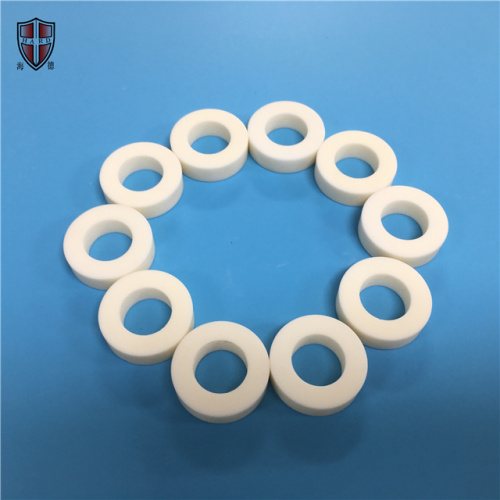

highly flat parallel alumina ceramic plain washer gasket

Reputation depends on quality, quality comes from Hard!

Ceramic Washers:

Ceramic fiber gasket
The product is non-brittle material, high strength, accurate size, can be made in various forms according to Al2o3 Ceramic customer needs, has good fire and heat insulation effect, and can directly contact fire. The classification temperature is 1050-1600 °C.
Features:
※The texture is tough and strong against Machinable Ceramic wind erosion
※No gap lining
※Low heat storage and low heat loss
※ Direct contact with flame for hot surface
※Excellent construction and installation performance
※Excellent thermal shock resistance
※High compressive strength and long service life
※ Sound absorption effect is remarkable
Applications:
※Industrial kiln observation hole and thermometer insertion hole
※Industrial kiln burners, furnace doors
※ Non-ferrous metal melting groove, Ceramic Tubes grooved lining, casting hat
※Mechanical equipment connection gasket

properties:

High hardness, high strength, wear resistance, corrosion resistance, high temperacture (1600°), good thermal diffusivity, good insulativity, low cost etc.

alumina spacer

Data Sheet↓

Color: White/Ivory
Density: 3.9g/cm3
Alumina Content: 96% 99% 99.5%
Gas permeability: 0
Water Absorption: 0
MONS' Hardness: 82
Vickers Hardness (Hv50): 15.7(1600) Gpa(Kg/mm²)
Flexural Strength(20°C): 330Mpa
Compressive Strength(20°C): 2000Mpa
Fracture Toughness (20°C): 4 MPam1/2
Thermal Conductivity(20°C): 27.5W(m.K)
Thermal Expansion Coefficient: 7.6 10-6/°C

Thermal Shock Resistance: 200 △T°C

Maximum use temperature 1650°C

Dielectric Strength: ＞10 KV/mm

Dielectric Constant: 9.1er

Dielectric Loss Angle(1MHz): 0.0002-0.0003

Volume Resistivity(20°C): ＞1014Ω.cm

Application industry: Machinery, electronic, chemical, petroleum etc.
Specific application: Electrical ceramic substrate, plunger, sealing ring etc.

Why Choose Us?
1.12 years of professional production industrial ceramics factory
2.High quality products with low price
3.High precision parts with lowest tolerance
4.Short time for production
5.Has a group of experienced, professional and efficient R&D team
6.Has a good reputation in China and abroad.

7.MOQ is not limited, small quantity is welcome.

8.Vigorous team and good after-sales service

Products Show

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
