52mm 8ohm 2w rubber edge ferrite magnet speaker
-
$0.623000-4999 Piece/Pieces
-
$0.605000-9999 Piece/Pieces
-
$0.57≥10000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian, Shenzhen, China
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Paypal |
|---|---|
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian,Shenzhen,China |

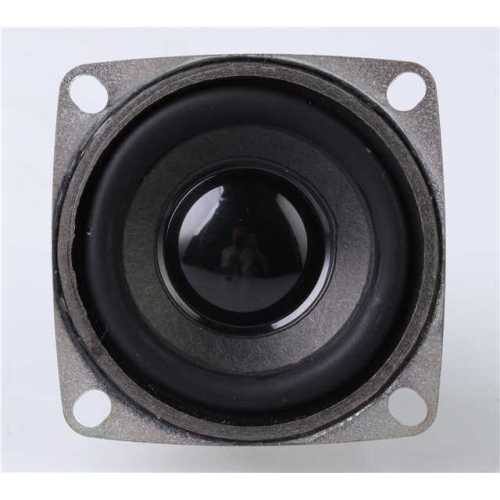

52mm 8ohm 2w rubber edge ferrite magnet speaker
2 inch 8ohm 2w speaker, rated power 2w max 3w, ferrite magnet speaker , 2 inch fullrange 8ohm 2w speaker , 8ohm 2w multimedia speaker, Round rubber edge ferrite external Y35 class magnetic 52mm 8ohm 2W Bluetooth audio speaker.2 inch round external magnetic fullfrequency speaker,with strong magnetic force and long-term work time with non-demagnetization,strong sound transparency,restore the original mellow and natural sound.13mm KSV voice coil with rubber-edge paper paper hat,clear sound,beautiful color,strong vibration to providing strong sound.Scope of application: mini stereo,balance car,advertising machine,electronic equipment,communication equipment etc.This model is excellent for 52mm 2W bluetooth audio speakers,learning machine speakers,multimedia speaker,81dB sensitivity,thick low frequency,strong vibration,it is a favorite product for some clients who look for low price and good performance speaker,
square speaker for easy assemble ,you can use screw to fix well , it suggest to use in Bluetooth speaker, sleeping machine speaker, AI speaker, robot speaker,and so on
Product Specification
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
52*52*33.5H mm
|
|
|
2
|
Nomial Impedance
|
8±15% OHM
|
At 1.0KHz / 0.89V
|
|
3
|
Input power
|
Rated：2W/ Max：2.5W
|
At 4.0V /4.47V
|
|
4
|
Resonance Frequency
|
240±20%Hz
|
At0.89V
|
|
5
|
S．P．L．
|
85±3 dB(1W/1M)
|
At0.5K/0.8K/1.0K/1.5KHz (Average)
|
|
6
|
Frepuency Range
|
F0~20K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 0.1W/0.1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at 4.0V /150~3KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 96 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25% R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of
－25℃ ±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speak shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤3~5sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|
Mini stereo,LED advertising machine，Smart projector，Early education machine，Headphone，Interphone，Cordless phone,Notebook,Portable DVD,TV,GPS Navigation,Building Security,Incar Multimedia System,Mini audio,etc
