Product Description

We also develop and produce other aumotive test devices such as relay tester, circuit tester, etc.

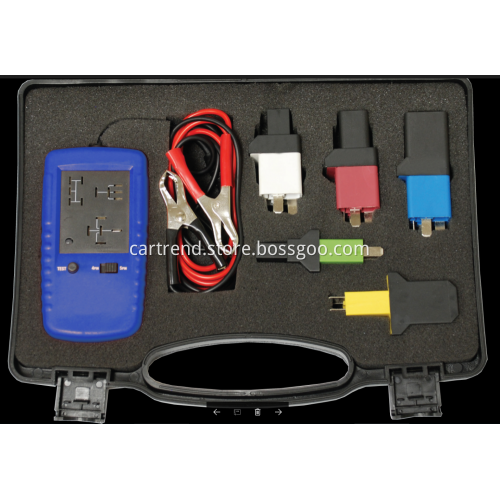

Cartrend automotive relay QUICK RESULT tester provides a simple YES/NO light indication result at the completion of a function test, on most common 4 and 5 pin automotive relays.

The relay control circuit is tested by activating and monitoring the internal relay coil circuit and this allows a separate load to pass through the relay contacts.
This is performed as a cycle where the EQP-018 can monitor the cycle consistency and assess the relay condition.

A failed relay will result with a RED light illuminated whilst a GREEN light indicates all activation and load cycles are acceptable.

Please note:

Ensure the correct relay is used for the specific vehicle circuit. An incorrect relay (incorrect amperage may result in premature relay failure or incorrect vehicle circuit operation.

Features:

Light weight ergonomic design

Simple YES/NO light indication result

Supports most 4 and 5 pin relays

Coil Resistance – 20 to 500 ohms

Coil Test Voltage – 9 Volts

Contact Resistance Threshold – 200 Milliohms

Specifications:
Length: 170mm
Width: 130mm
Height: 70mm
Weight: 0.25kg
