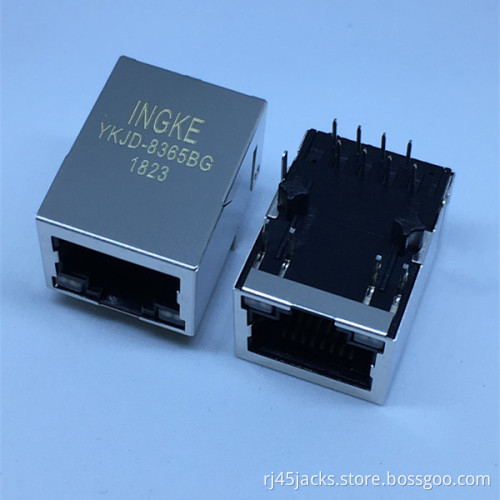

WE 7499010441 Through Hole Magnetic Modular RJ45 Jacks

Ingke YKJD-8365BG 100% cross 7499010441 10/100 Base-T, AutoMDIX Magnetic Modular RJ45 Jacks

Part Number :7499010441
Made in China:YKJD-8365BG
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation:  90° Angle (Right)
Termination :Solder
LED Color: Green, Yellow - Green, Yellow
Number of Cores per Jack : 4
Shielding : Shielded
Features:  Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material : Copper Ally
Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;

MIC24213-5101T-LF3 MIC24310-0101T-LF3 MIC24311-0101T-LF3 MIC24510-0101W-LF3 MIC24611-5104T-LF3 MIC24713-0101W-LF3 MIC24U13-5115W-LF3 MIC25011-5110T-LF3  7499211121A 7499210121A 7499211125 7498111001 7498111001 7498111001 7499111446 7499111221A 7499111447 7499151120 7497110616
