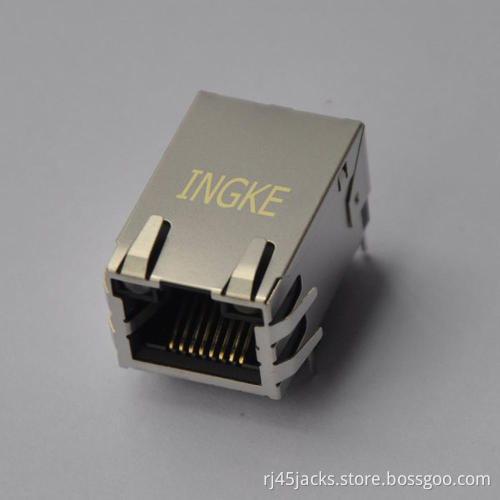

Ingke YKGU-8199NL 100% cross JD1-0001NL Through Hole RJ45 Magnetic Modular Jacks

Ingke YKGU-8199NL 100% cross JD1-0001NL Through Hole RJ45 Magnetic Modular Jacks

Part Number : JD1-0001NL

Made in China:YKGU-8199NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Packaging :Tray

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

LED Color: Yellow - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features:  Board Lock

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;

JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JG0-0045NL JG0-0051NL JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL JX20-0116NL JC0-0132NL J20-0116NL JC0-3022NL JC0-0319NL JC0-0133NL J0B-3448NL J00-0065 J0011D21 J0026D21B J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JK0-0016 JK0-0017 JG0-0023 JG0-0025
