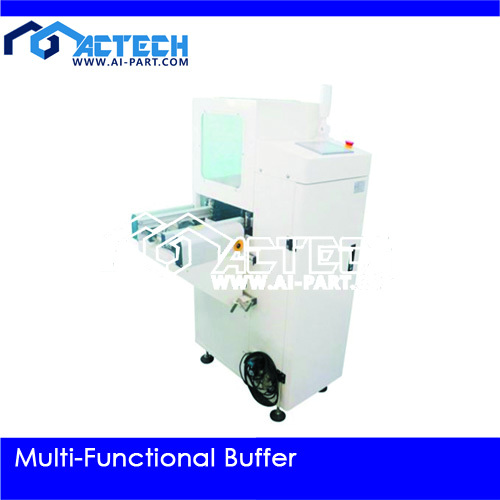

Multi Functional Buffer Conveyor
Your message must be between 20 to 2000 characters
Contact Now
PCB Loader Machine is used as a buffer between SMT Equipment. This buffer machine is to store PCB and for avoiding plug boards due to speed. Smart Conveyor Unit uses ball screw and a sliding track for rail width adjustment. MT Series Multi-Functional Buffer feature Panasonic PLC control system, touch screen, automatic width adjustment, step motor and imported screw platform. You can set a variety of working patterns with MT Series Multi-Functional Buffer.
Features:
1. Panasonic PLC programmable control system , touch screen operation, easy to understand
2. A variety of working patterns; first in first out, last in first out, etc.
3. Fully automatic width adjustment function.
4. The width of the rail can be adjusted by ball screw + Sliding track
5. The transmission is driven by step motor
6. Use imported screw platform
7. SMEMA interface compatible
*contact us to see full product catalog.
Option:
|
Model |
PCB Size (L x W ; mm) |
Magazine Dimensions (L x W x H ; mm) |
Machine Weight (Kg) |
|
MT-250MC |
50*50 – 450*250mm |
500*760*1600mm |
120 |
|
MT-300MC |
50*50 – 450*300mm |
500*800*1600mm |
140 |
|
MT-400MC |
50*50 – 450*400mm |
500*900*1600mm |
170 |
