24V 21A Power Supply 504W Power Adapter

24V 21A Power Supply 504W Power Adapter

24v 24a 504w power adapter is our hot sale product, it is high quality, the switching power supply meets CE FCC RoHS certificate and DOE Level VI .this ac power adapter has high PFC function more than 0.99,and without cooling fan but it is low noise,good insulation and high electrical resistance,The ac dc power adapter is used for printer equipment,Power amplifier,video data collection device.

Features:

Universal AC input/Full range(up to 264Vac)

Protection: Short circuit/Overload/Over temperature

Cooling by free air convection

High efficiency, long life and high reliability

100% full load burn-in test

Fixed switching frequency at 75KHz and 55 KHz

24 months warranty

Product Description:

Model No:PC-240210

AC input: 100-240Vac, 50/60HZ

DC voltage: 24V

Rated current: 21A

Rated power: 504W

Dimension: 215*125*65MM

Ripple & Noise: <240mVp-p

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50℃ (±10℃)

Storage Temperature:  -40-80℃ (±10℃)

DC connector: 4PIN connector

AC Power Cord: 0.9M/1.2M/1.5M(Customized Available)

AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs

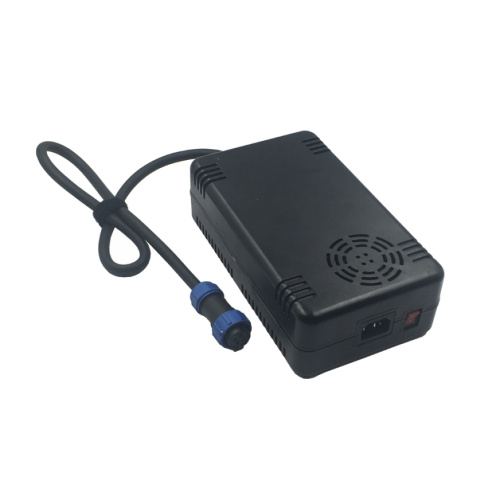

Product Images:
