220vac to 12vdc 16a ac dc power supply

220vac to 12vdc 16a AC DC Power Supply

Power your devices with PENGCHU Switching Power Supply. the Power Supply's PFC is more than 0.99, top in efficiency, meet DoE Level VI syandard. The Power Supply Adapter also has over current, over load, over temperature and short circuit protection to make your devices more safety.

Product specifications:

Model NO.:PC-120160

AC Input:100~240V AC 50/60Hz  Max:90~264V AC 47/63Hz

DC Voltage: 12V

Rate Current: 16A

Current Range:0~16A

Rate Power: 192w

Material:100% PC

Certification:Approved CE ROHS FCC certifications

Rippe & Noise:<120MVP-P

Voltage Tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

Efficiency:>90%

Standard: UL/ ETL, VI standard

PFC: >0.99

Short Circuit Protection:Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.

Over Current Protection:130%~150%

Over Voltage Protection:115%~135%

Operating Temperature:-10℃~50℃(±10℃)

Relative Humidity:20%~90% RH

Storage Temperature:-40℃~80℃(±10℃)

DC Connector: 3PIN,4PIN...can be customized

DC Power Cord: 0.8M, 0.9M, 1M, 1.2M(Customized available)

AC Power Cord:1.2m AC Power Cable with USA/UK/EU/AU/India Plugs(Customized available)

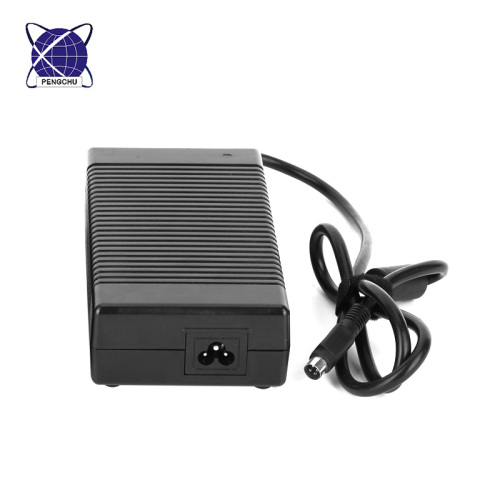

Product show:

Why Choose US:

• Professional team for after-sale service 7*24
• 11 years Alibaba Gold supplier
• Experienced R & D team and profesional sales team
• OEM & ODM service, we will evaluate, design and produce your customized products
• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.
