dual output power supply 12v 3a 48v 1a

dual output power supply 12v 3a 48v 1a

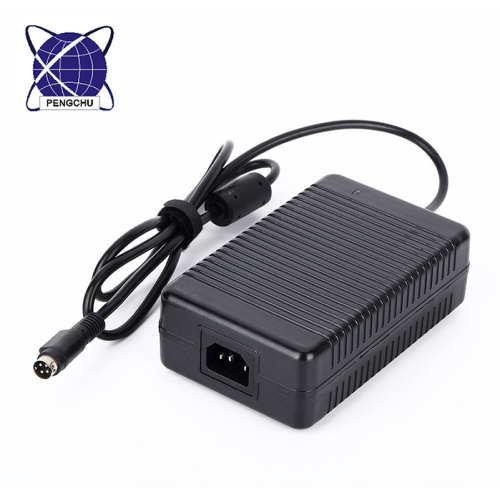

dual output power supply 12v 3a 48v 1a with 4 pin DC connector is high quality,this power adapter is full power with 4 Pin DC connector,output 1 is 12v 3a,output 2 is 48v 1a,the power is 84w.who need this power supply please contact with me freely.

Product Description:

Part NO.: PC-120030

DC Voltage:12V/48V

Rate Current:3A/2A

Current range:0~3.0A/2A

Rate power:84W

Voltage tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

AC Input:100~240Vac 50/60Hz max: 90~264Vac 47/63Hz

Efficiency:>85%

Short Circuit Protection: Shall be protected when any output operation in circuit shortcondition,and shall be auto restart

when  the fault condition is removed.

Over Current Protection:130%-150%

Over Voltage Protection:115%-135%

Operating Temperature:-10-50ºC (±10ºC)

Relative Humidity:20%-90% RH

Storage Temperature:-40-80ºC (±10ºC)

DC Connector:4PIN or 6PIN connector (Customized Available)

DC Cable:1.2m/1.5m/1.8m(Customized Available)

AC Cable:1.2m ac power cord with USA/UK/EU/AU/India plugs

Features:

• Universal AC input/Full range(up to 264Vac)
• Protection: Short circuit/Overload/Over temperature
• High efficiency, long life and hign reliaility
• 100% full load burn-in test
• One year warranty
• Class 1 design
