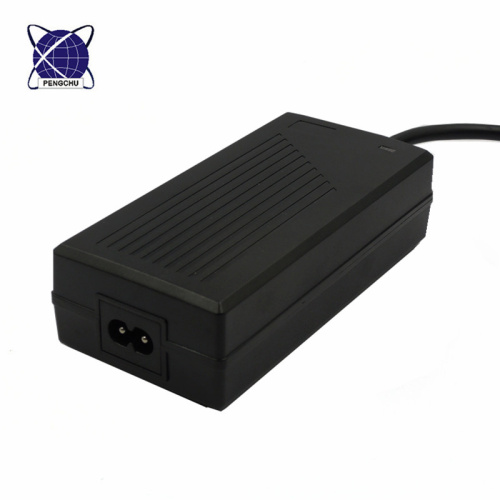

12V 5V 2A Dual Output Switching Power Supply

12V 5V 2A Dual Output Switching Power Supply

12v 5v 2a dual output switching power supply product dimension is 105*50*30mm,output 1 is 12v 2a,output 2 is 5v 2a,the output power is 34w. all our power supply are good performance and durable,100% aging test before delivery;so if you need to purchase power adapter,you choose us is a good choice.

Product Description:

Part NO.: PC-120020

DC Voltage:12V/5V

Rate Current:2.0A

Current range:0~2.0A

Rate power:34W

Voltage tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

AC Input:100~240Vac 50/60Hz max: 90~264Vac 47/63Hz

Efficiency:>85%

Short Circuit Protection: Shall be protected when any output operation in circuit shortcondition,and shall be auto restart

when  the fault condition is removed.

Over Current Protection:130%-150%

Over Voltage Protection:115%-135%

Operating Temperature:-10-50ºC (±10ºC)

Relative Humidity:20%-90% RH

Storage Temperature:-40-80ºC (±10ºC)

DC Connector:4PIN or 6PIN connector (Customized Available)

DC Cable:1.2m/1.5m/1.8m(Customized Available)

AC Cable:1.2m ac power cord with USA/UK/EU/AU/India plugs

Features:

• Universal AC input/Full range(up to 264Vac)
• Protection: Short circuit/Overload/Over temperature
• High efficiency, long life and hign reliaility
• 100% full load burn-in test
• One year warranty
• Class 1 design
