144W 48V 3A AC DC Switching Power Supply

144W 48V 3A AC DC Switching Power Supply

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 9 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	150000
Supply Ability:	150000
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA
Certificate:	CE ROHS FCC
HS Code:	8504401300
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou,Shanghai

Product Description

144W 48V 3A AC DC Switching Power Supply

PC-480030 48V 3A AC DC power supply 48V Power adapter, Universal AC input/Full range(up to 264Vac) Power Adapter with CE RoHS FCC, this SMPS with PCIE-6PIN,you can choose 4pin or 6pin.This Switch Mode Power Supply with Two Years Warranty,This Power Adapter is 100% aging test.This AC/DC Adapter Dimension is 168*75*50MM.

Product Description:

Model No:PC-480030

AC input: 100-240Vac, 50/60HZ

DC voltage: 48V

Rated current: 3A

Rated power: 144W

Dimension: 168*75*50MM

Ripple & Noise: <480mVp-p

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50℃ (±10℃)

Storage Temperature: -40-80℃ (±10℃)

DC connector: 5.5*2.5mm or 5.5*2.1mm dc connector

DC Power Cord: 1.2M/1.5M/1.8M(Customized Available)

AC Power Cord: 1.2M ac cable with UK/AU/USA/EU/India plugs

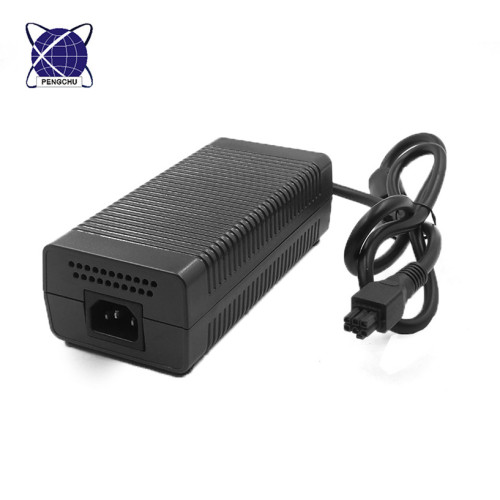

Product Images:
