180W Power Adapter 36Volt AC Power Charger

180W Power Adapter 36Volt AC Power Charger

36v 5a power supply adapter usually use for led lcd cctv camera. This ac dc adapter with indicate led light, The ac dc power supply have IEC320-C5 or IEC320-13 can be choose. 180w 36v ac adapter is used for 100% PC material. 36v led power supply have CE FCC RoHS approved and with high efficiency.

Features:

• Universal AC input/Full range(up to 264Vac)
• Protection: Short circuit/Overload/Over temperature
• This Power Supply Adapter is cooling by free air convection or fan inside
• High efficiency, long life and high reliability
• 100% full load burn-in test
• Fixed switching frequency at 75KHz and 55 KHz
• 24 months warranty

Product Description:

Model No:PC-360050

AC input: 100-240Vac, 50/60HZ

DC voltage: 36V

Rated current: 5A

Rated power: 180W

Dimension: 168*75*50MM

Ripple & Noise: <360mVp-p

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50℃ (±10℃)

Storage Temperature:  -40-80℃ (±10℃)

DC connector: 6PIN connector or 5.5*2.5mm connector

AC Power Cord: 1.2M/1.5M/1.8M(Customized Available)

AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs

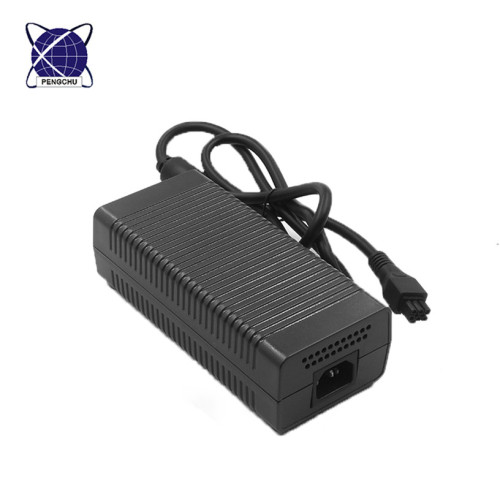

Product Images:
