36V 5A Power Supply 36V 180W DC Charger

USD23.5

≥100 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 9 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	150000
Supply Ability:	150000
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA
Certificate:	CE ROHS FCC
HS Code:	8504401300
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

36V 5A Power Supply 36V 180W DC Charger

Features:

Universal AC input/Full range(up to 264Vac)
Protection: Short circuit/Overload/Over temperature
This Power Supply Adapter is cooling by free air convection or fan inside
High efficiency, long life and high reliability
100% full load burn-in test
Fixed switching frequency at 75KHz and 55 KHz
12 months warranty

Product Description:

Model No:PC-360050

AC input: 100-240Vac, 50/60HZ

DC voltage: 36V

Rated current: 5A

Rated power: 180W

Dimension: 168*75*50MM

Ripple & Noise: <360mVp-p

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50℃ (±10℃)

Storage Temperature: -40-80℃ (±10℃)

DC connector: 6PIN connector or 5.5*2.5mm connector

AC Power Cord: 1.2M/1.5M/1.8M(Customized Available)

AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs

Product Images:

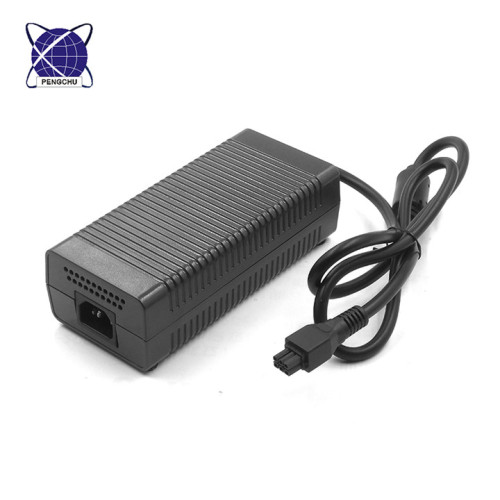

ac dc switching power supply
