rear view reversing backup camera 360 degre
$36.50 - $40.00/Bag/Bags
- Min. Order:
- 2 Bag/Bags
- Min. Order:
- 2 Bag/Bags
- Transportation:
- Ocean, Air
- Port:
- Shenzhen, Hongkong, Guangzhou
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Supply Ability: | 12000/month |
| Payment Type: | Paypal,T/T |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery |
| HS Code: | 8525801390 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen,Hongkong,Guangzhou |
Product Description
Product Description

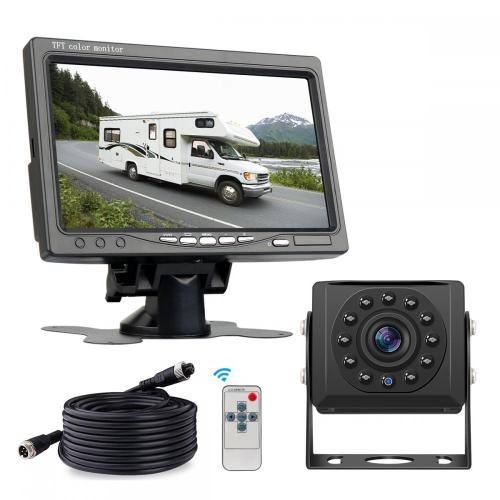

| TRUCK REVERSE CAMERA SYSTEM SV-AHD CX27+H12T | |||
| 7 inch AHD Truck Monitor | AHD-H12T Truck Camera | ||
| Specifications | AHD-CX77M Truck Monitor Spec. | SPEC | Model No:AHD-818T |
| Screen Ratio | 16:9 | Image sensor | AHD CMOS 1/2.9” |
| Back Light Luminance | 27 IPS screen , 500cd/stere | Resolution | 1280*720(100W) |
| Resolution | 800*480 RGB | Illuminance | 0.001Lux,Infrared night vision |
| Compatible system | NTSC & PAL (automatically) | CDS night version change | Change to black and white image automatically in the night |
| OSD control | Brightness, Contrast, Saturation, Volume, Language | Viewing Angle | 110 degree[H] 150 degree[D] |
| (English, Simplify Chinese) | Image | Mirror or Normal optional | |
| View angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) | Appearance and Application | outside hanging design; Suitable for bus,trucks and Industrial vehicles etc. |
| Image reversion | UP/Down and Left/Right | System | PAL/NTSC optional |
| Power requirement | DC 12-36V | Waterproof Level | IP68 |
| Power consumption | 5W | Shockproof Level | 4G (Aluminium alloy case) |
| Storage temperature | -30℃ to 80℃ | Power Requirements | DC 12V-36V |
| Working temperature | -20℃ to 70℃ | Power Consumption | <3W |
| AV Inputs | 2 channels HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30 | Maximum current | <250mA |
| Number of Trigger and display | 2 triggers | Connector | 4PIN or RCA optional |
| Optional functions | 4 PIN connector | Working Temperature | -10℃ to 60℃ |
| Other features | OSD menu, Remoter control, Sunshade design around | Storage Temperature | -20℃ to 70℃ |
| Accessories | Remote controller, User manual, Bracket, Hexagon wrench,Hexagon screws,sunshade | ||
| Package | 10pcs/box Net weight:13.2KGS Gross weight:14KGS M:54*43*27cm | ||
