10 ports full gigabit managed PoE switch
Your message must be between 20 to 2000 characters
Contact Now10 ports full gigabit Managed Industrial PoE switch
Overview
Whether it is manual exchange or program-controlled exchange, it is for the transmission of voice signals and is a "circuit exchange" that requires exclusive lines.

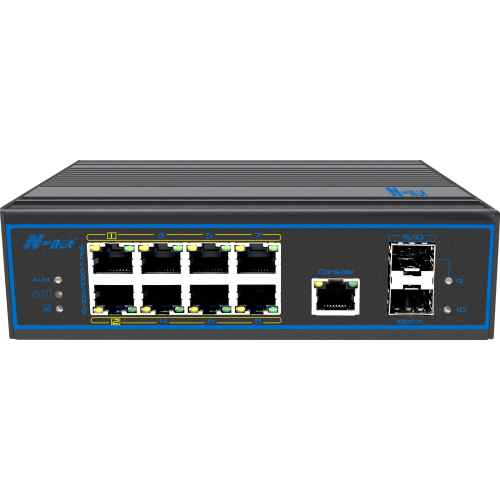

NIE8082PGM is a 10-port full gigabit industrial managed PoE switch that supports up to 8*10/100/1000M PoE downlink ports, 2* 1000M SFP ports. Ethernet is a computer network that needs to transmit data, so "packet switching" is used.8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, support 2 port PoE power each up to 90W,6 port PoE power each up to 30W.
Ethernet switch manufacturers have introduced three-layer or even four-layer switches based on market demand.
It supports L2 managment, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management.
But in any case, its core function is still the two-layer Ethernet packet exchange, but with a certain ability to deal with the IP layer and even higher-layer packets.
It supports 6KV surge protection, 8KV contact/15KV air ESD protection.
A network switch is an equipment that expands the network, and can provide more connection ports in the sub-network to connect more computers.
It supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W. |
|
Downlink ports |
Ports 1~2 10/100Base-TX 90W 3~8 10/100Base-TX 30W |
|
Uplink ports |
Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE802.3bt,also support IEEE 802.3af/at) 3~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)
|
|
Cable and distance |
Use cat5e/6,100m max. |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
20Gbps |
|
Thoughput |
14.88Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink 9~10: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE
|
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact / 15KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165 mm×115 mm×50mm
|
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
1000g |
