Web Managed L2+ Industrial POE Switch

Web Managed Industrial switch

2. Exchange capacity: core indicators

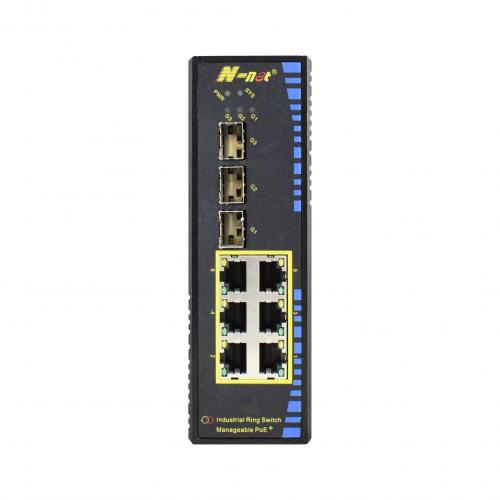

N-net NT-MIN1063GF-AF4 Industrial Ethernet switch series is Web Managed L2+ industrial ring network POE switch with 6 ports 10/100Base-Tx to 3 ports 1000Base-Fx.

3. Packet forwarding rate: the size of the switch's ability to forward data packets
It supports NT-ring function, so customers can create various stuctures of ring network.

The three are related to each other.

It is an industrially (substation) hardened and fully managed Ethernet Switch specifically designed to operate reliably in electrically harsh and climatically demanding environments.

If the bandwidth of the backplane is high, the switching capacity is large and the packet forwarding rate is high.

N-net NT-MIN1063GF-AF4 Industrial Ethernet switch features strong and rapid self-recovery capability to prevent interruptions and outside intrusions.

Tasks of managed switches

It incorporates advanced redundant data Ring technology, Rapid Spanning Protocol (IEEE 802.1w RSTP) and redundant power supply system into customers` industrial automation network to enhance system reliability and uptime in the harsh factory environments.

The switch is the most important network connection device in the local area network. Most of the management of the local area network will involve the management of the switch.

It also protects customer`s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 20ms to quickly bring the network back to normal operation.

N-net NT-MIN1063GF-AF4 Web Managed L2+ fast Industrial ring network POE switch also support 4 port POE with standerd IEEE802.3AF and IEEE802.3AT.

Industrial Ethernet switch Features

1. Industrial Ethernet switch series designed specifically for harsh industrial environments.

2. L2+ features provide better manageability, security, QoS, and  performance.

3. This Industrial Ethernet switch Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP

Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

4. Support spanning tree STP(802.1D) and RSTP(802.1W).

5. Jumbo frames support up to 9.6K kilobtyes.

6. Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

7. Support cable diagnosis

8. IEEE 802.3af and 802.3at. Supports per port PoE configuration function

9. G.8032, support <50ms industrial quick ring protection

10. Using industrial design: -40 ℃ ~ +80 ℃ working temperature and redundant dual power input (46-54V DC)

11. Protection grade: IP40, aluminum chassis cooling surface design, no fan, no cooling hole.

Industrial Ethernet switch  Specification
