Web Managed Industrial fast Ethernet POE switch

Web Managed Industrial fast Ethernet POE switch

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF, FCA

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen, Guangzhou, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000pcs/day
Supply Ability:	5000pcs around 10-20 days
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF,FCA
Certificate:	CE, FCC,ISO9001
HS Code:	8536700000
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Product Description

Overview

The task of a managed switch is to keep all network resources in good condition.

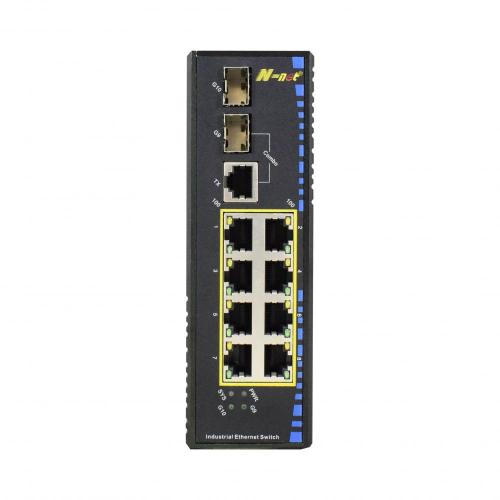

N-net NT-INM1081GC1GF-AF8 is Web Managed Industrial Switch, equipped with 2 1000base-X SFP interface, 8 10/100base-T (X) port.

Managed switch products provide a variety of network management methods based on the terminal control port (Console), based on Web pages, and support Telnet remote login network.

It is a new generation of L2+ Managed Network Switch with POE+ and practical Auto check function, inother words, if any IP-camera freezes, which connects with our Industrial switch, the management system be rebooted by automatically turning the PoE off and then on.

Therefore, the network administrator can perform real-time local or remote real-time monitoring of the switch's working status and network running status, and manage the working status and working mode of all switching ports globally.

It is more intelligent, you need to improve the availability of your critical business applications, protection your sensitive information, optimize your network bandwidth to transmit information and applications more effectively, to meet the industrial site for network system reliability and practical requirements.

Three major indicators of managed switches
1. Backplane bandwidth: determines the upper limit of the connection bandwidth between each interface template and the switching engine.

Features

1. 8 10/100M port and 2 10/100/1000Mbps Ethernet COMBO port (optical fiber port / Ethernet port multiplexing)..

2. Compatible with IEEE 802.3, IEEE, 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standards.

3. Support for managing each POE port (optional) through network management software, and support advanced POE Auto check function, POE (optional) power, maximum output power of 250W, each port provides up to 15.4W/30W output power

4. Support L2+ Switching features including Administrator, Port Management, PoE+ Management, VLAN Setting, Per Port Counter, QoS setting, Security, Trunking, Spanning Tree ,DHCP Relay Agent, Backup/Recovery, Miscellaneous, SNMP Settings, Logout, and so on.

5. Support packet length up to 1536 Bytes.

6. G.8032, support <50ms industrial quick ring protection

7. Using industrial design: -25 ℃ ~ +70 ℃ working temperature and redundant dual power input (46-54V DC)

8. Protection grade: IP40, aluminum chassis cooling surface design, no fan, no cooling hole.

Specification

technical parameter	Standard:IEEE802.3,IEEE802.3u, IEEE802.3ab ,IEEE802.3x, IEEE802.1D(STP), IEEE802.1Q(VLAN Tagging),IEEE802.1p(QoS) Protocol:IGMP v1/v2,GVRP, SNMP v1/v2/v3 , DHCP Client, TFTP, SMTP, RMON, LDP, HTTP, Telnet, SNTP Server/Client,. Flow control:IEEE802.3x(Flow control).Back Pressure
function	Switch function: Administrator, Port Management, PoE+ Management, VLAN Setting, Per Port Counter, QoS setting, Security, Trunking, Spanning Tree ,DHCP Relay Agent, Backup/Recovery, Miscellaneous, SNMP Settings, Logout, etc.
Interface	Fast Ethernet port:2X4 10/100M 100Base-T/100Base-TX (RJ45). Giga Fiber port: 1X2 1000Base-X SFP (fiber port). Rs232 port number:1 RS-232 Control port, baud rate:115200bps
transmission distance	RJ45:100M(Standard CAT5/CAT5e cable) Multimode fiber:1310nm,2KM single mode fiber:1310nm,20/40/60Km 1550nm,20/40/60/80/100/120Km
Switch attribute	System forwarding speed:4.2Mpps transmission mode:Store and forward. System switching bandwidth:5.6G MAC address table:4K Buffer:2.75Mbit Frame buffer.
LED indicator light	System indicator:SYS Interface indicator:The green light is 100M,light and blink for port link-up status,Transmitting and receiving data,Off is link-down status. Yellow light is light for port poe status.
Power Supply	Input voltage:46~54VDC Input mode:Plug in type 6 core 5.08mm spacing terminal Support redundancy function for dual power supply
work environment	Operating temperature range:-25~70℃ Storage temperature range:-40~85℃ Outer case:IP40 protection grade, corrugated high strength metal case Installation method: guide rail type.
