Fast 8 Ports POE Switch For IP Cameras

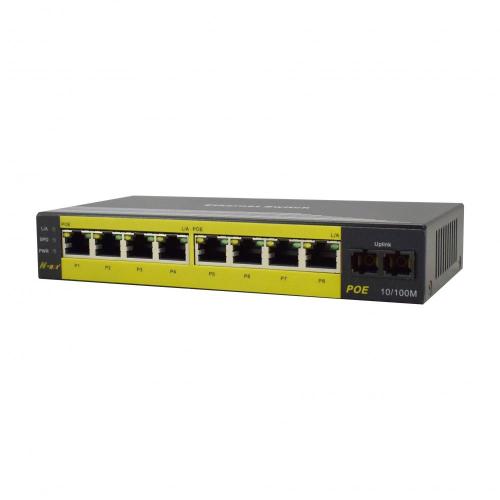

N-net Fast 8 Ports POE Switch For IP Cameras

NT-1800-AF8 10/100M 8 ports poe switch for IP cameras is a switch that 8 ethernet downlink ports are all with power over ethernet function,which supports power for front devices. By 1 fiber uplink port, the transmission distance of this ethernet switch can be up to 120km. The NT-1800-AF8 also is unmanaged fast ethernet poe switch that provides a quick and easy PoE PDs deployment for wireless access points, IP-based surveillance cameras or IP phones anywhere.

POE Switch 8 Ports Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
3. 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Jumbo frames support a maximum of 1552 bytes
7. 52 DC power input
8. -20 To 70 ℃ operating temperature to meet a variety of complex environments
9. Copper ports support ESD protection
10. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection
11. Support PoE power supply up to maximum of 25.5W

8 Ports Ethernet POE Switch Application

POE Switch 8 Port Package

Box dimension: 290*230*60mm
