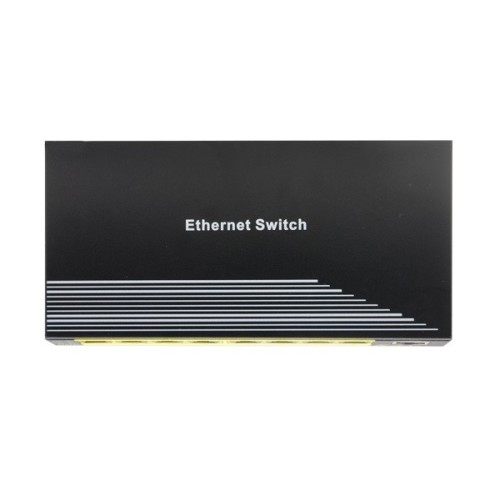

Fast Unmanaged 8-port POE Ethernet Switch

N-net Fast Unmanaged 8-port POE Ethernet Switch

N-net NT-W900-AF8 8-port poe ethernet switch is a switch that with full ethernet ports and its uplink port is an ethernet port while its downlink ports are 8 IEEE802.3af PoE ports.The rate of this poe switch is 10/100M and the poe ports power capacity is 123.2W. NT-W900-AF8 10/100M 8 ports poe switch becomes a simple and non-blocking wire-speed solution. For surveillance and transmission, this unmanaged ethernet switch could furnish enough function.

POE Switch 8 Ports Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af PoE
3. 10/100M automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Maximum of 9216 bytes Jumbo frame supported
7. 52V DC power input
8. -20 To 70 ℃ operating temperature to meet a variety of complex environments
9. Copper ports support ESD protection
10. Support PoE power supply up to maximum of 30W

POE+ Switch Application

POE Switch 8 Port Package
