Gigabit POE Switch 8 Port Unmanaged

N-net Gigabit PoE Switch 8 Port Unmanaged

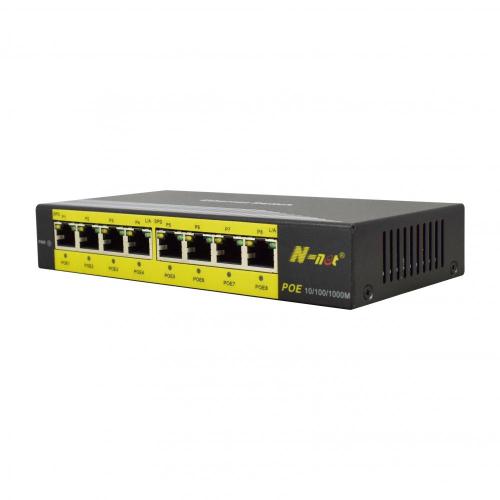

N-net NT-WG800-AF8 is an unmanaged 8 ports gigabit PoE switch that every port can be used as the uplink ports. This 8 ports PoE ethernet switch can automatically identify 10/100/1000M and be compatible with various cards, switches, HUB and other Ethernet devices.The total power capacity is 130W. It's also called poe+ switch that one of the power over ethernet ports supports 60W for high-power devices, others support 30W.

PoE Switch 8 Ports Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af PoE
3. 10/100/1000M automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Maximum of 9216 bytes Jumbo frame supported
7. 52V DC power input
8. -20 to 70 ℃ operating temperature to meet a variety of complex environments
9. Copper ports support ESD protection
10. Support PoE power supply up to maximum of 30W

PoE+ Switch Application

PoE Switch 8 Port Package
