4-Port POE Switch Gigabit Unmanaged

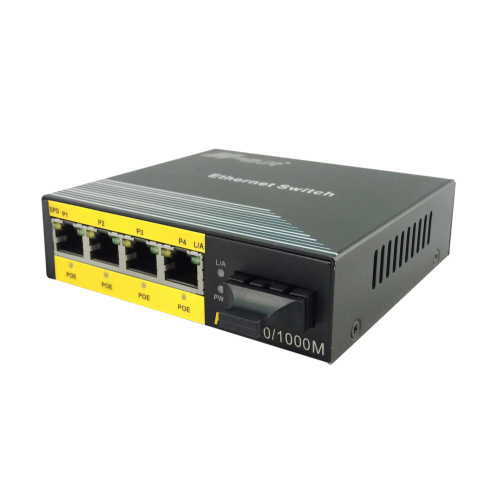

N-net 4-Port PoE Switch Gigabit Unmanaged

N-net NT-G1400-AF4 is a 10/100/1000M poe switch with a gigabit fiber uplink port & 4 gigabit power over ethernet downlink portst. With standard Compliance IEEE802.3 Ethernet, IEEE802.3u Gigabit Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3z Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE, this 4 port gigabit switch provides power and data, supporting dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection.

Gigabit PoE Switch 4 Port Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE
3. 10/100/1000Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices
4. Store-and-forward mechanism is employed to avoid packet loss and error frames
5. Support full-duplex flow control / half-duplex back pressure mode
6. Jumbo frames support a maximum of 1552 bytes
7. 52 DC power input
8. -20 To 70 ℃ operating temperature to meet a variety of complex environments
9. Copper ports support ESD protection
10. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection
11. Support PoE power supply up to maximum of 25.5W

PoE+ Switch Application

PoE Switch 4 Ports Package

Box dimension: 230*190*65mm
