Unmanaged Gigabit PoE Switch 4 Ports

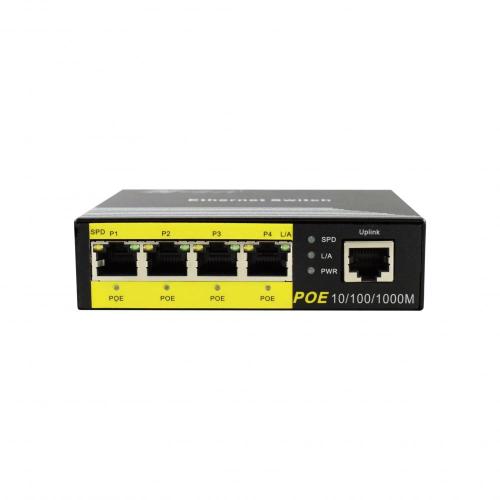

N-net Unmanaged Gigabit PoE Switch 4 Ports

N-net NT-WG500-AF4 is a 10/100/1000M poe switch with one ethernet uplink port and 4 PoE downlink ports. This  4 port gigabit switch provides an additional solution for 802.3at/af PoE distance extension and enables an efficient solution for SMB, SOHO and system integrators to deploy the PoE network. If you don't want to rebuid wires & want to connect network in inconvenient power extraction environment, N-net 4-port PoE switch ensures your a cost-efficient solution in practice.

4 Ports PoE Ethernet Switch Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets.
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE.
3. 10/100/1000Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices.
4. Store-and-forward mechanism is employed to avoid packet loss and error frames.
5. Support full-duplex flow control / half-duplex back pressure mode.
6. Jumbo frames support a maximum of 1552 bytes.
7. 52 DC power input.
8. -20 to 70 ℃ operating temperature to meet a variety of complex environments.
9. Copper ports support ESD protection.
10. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection.
11. Support PoE power supply up to maximum of 25.5W.

PoE+ Switch Application

4 Port PoE Switch Package

Box dimension: 230*190*65mm
