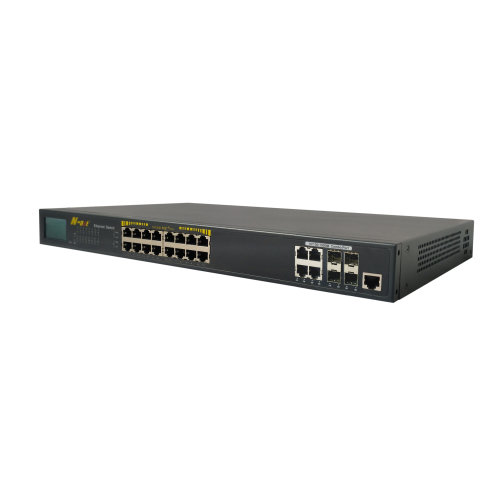

N-net Managed 16 PortS POE Switch with LCD Monitor
N-net NT-35M16T4GCL-AF16 16 ports Ethernet switch is a L2 managed POE switch with LCD screen visual function PoE switch, which is dedicated to the application of video monitoring system and network engineering and design, to provide 16 Fast Ethernet ports and 4 COMBO ports (Gigabit UPLINK port:fiber and Ethernet port is optional). The LCD monitor displays the working system power, power outputs each port and the working conditions of PD devices (Optional).
Managed POE Switch 16 Ports Features
- 16x 10/100Mbps downlink PoE Ethernet Ports, 4x 10/100/1000Mbps uplink combo Ports.
- IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
- Each of 16 ports all support IEEE802.3af/at
- 10/100Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
- Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
- DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
- Store-and-forward mechanism is employed to avoid packet loss and error frames
- Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
- Support IP/Port/Mac binding.
- Jumbo frames support a maximum of 9.6K kilobtyes
- Support enhanced management through WEB, CLI, SSH, SNMP.
- Various LCD display functions can real-timely display the device`s current working conditions, and help prompt facility and remove trouble easily. (Option)
- Maximum power per port: 30W
- Maximum PoE power: 440W (Port 1 to Port 16)
- Built-in 1U rack power supply series, easy installation
The LCD Monitor
POE Switch 16 Ports For Cctv
POE Switch 16 Ports Package
Box dimension: 530*395*90mm
