28 ports full gigabit L2 managed PoE Switch
Your message must be between 20 to 2000 characters
Contact NowOverview

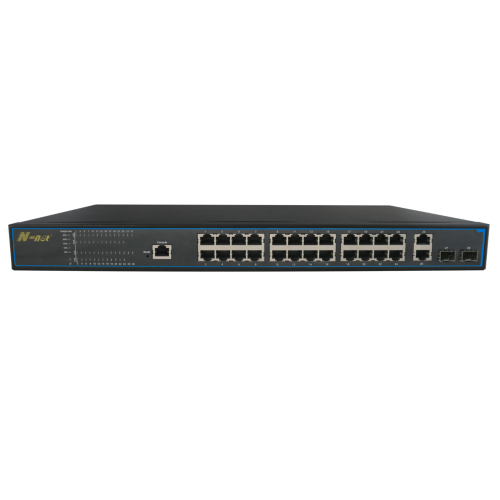

NC3244PGM is a 28-port PoE managed switch. It supports up to 24 10/100/1000M PoE ports, 2 10/100/1000M ports and 2 1000M SFP slots. 24 10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W.
It supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, Ports management and PoE management.
It supports the PoE usage rate indication, which is convenient to show the consumption of PoE power.
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV/8KV ESD protection.
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
This switch series contain 450W and 300W power module, two versions to choose.
Features
-
NC3244PGM is a 28-port PoE L2 managed switch. It supports up to 24 10/100/1000M PoE ports, 2 10/100/1000M ports and 2 1000M SFP slots. 24 10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W ;
-
It supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, Ports management and PoE management ;
-
It supports the PoE usage rate indication, which is convenient to show the consumption of PoE power ;
-
It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV/8KV ESD protection ;
-
It supports wall hanging and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions ;
-
This switch series contain 450W and 300W power module, two versions to choose.
Specifications
|
Parameter |
Specifications |
|
Power supply |
AC power supply |
|
Range of voltage |
AC100-240V, 50/60Hz |
|
Consumption |
Self-consumption<25W, PoE output 390W/270W |
|
Downlink ports |
Ports 1~24 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) |
|
Uplink ports |
25~26 ports 10/100/1000Base-TX RJ45; 27~28 ports:1000Base-X SFP |
|
PoE ports |
Ports 1~24 support IEEE802.3af/at, end-span, 30W per port Max. |
|
POE Usage rate |
20%, 40%, 60%, 80%, 90% LED indicator, indicates PoE usage. |
|
L2 Management |
CLI: use Console port(115200 8N1); Web: use one of 1-28 ports; Supports QoS, VLAN, MSTP, Multi-brocast, Ports management , PoE management and so on. |
|
1~24 PoE ports |
Support IEEE 802.3af/at, end-span, single port≦30W |
|
Cable and distance |
Use cat5e/6 100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
56Gbps |
|
Thoughput |
41.7Mpps |
|
Buffer |
4M |
|
MAC address table |
16K |
|
Indicator |
Power: 1 *red ; 20%, 40%, 60%, 80%, 90% LED indicator, indicates PoE usage. Uplink25~26: green LEDs indicate Link/Act 27~28: 1000Base-X SFP green LEDs indicate Link/Act Downlink 1~24: green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-10℃~50℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
442mm×285mm×44mm |
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
5KG |
