N-net L2 10/100M Managed Power Over Ethernet Switches

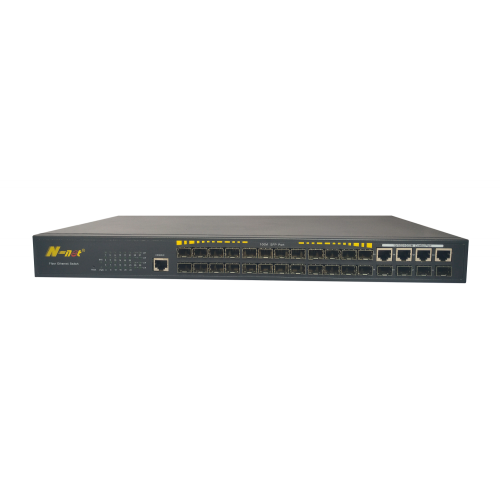

N-net NT-35M24F4GC managed fast ethernet poe switch is a high-performance, network management optional L2 Ethernet all-optical switch. Based on industrial network dedicated switching chip as the core, the main application is to provide support for Ethernet two layer exchange for the construction of the campus network, or with the special software (optional, authentication and billing) for Ethernet access or cell broadband aggregation equipment. This L2 managed switch supports 24 100Base-FX SFP interface and 4 Gigabit uplink COMBO port (fiber port and Ethernet port is optional).

NT-35M24F4GC stackable  managed fast Ethernet PoE switch can be applied to the campus network, enterprise network and residential communities, Internet broadband access, small office network, network video surveillance application environment, complete the long-distance multi user access needs through a pair or an optical fiber can be simplified, the access layer of the network structure, saving equipment investment, will greatly shorten the network the cycle and reduce the construction cost and maintenance cost, optical fiber transmission cost-effective access solutions.

PoE Switch Features

1. 24x 10/100Mbps downlink optical fiber Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports ,or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z
3. compatible with various Ethernet devices
4. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMP Snooping,
5. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
6. Store-and-forward mechanism is employed to avoid packet loss and error frames
7. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
8. Support IP/Port/Mac binding.
9. Jumbo frames support a maximum of 9.6K kilobtyes
10. Support enhanced management through WEB, CLI, SSH, SNMP.
11. Built-in 1U rack power supply series, easy installation

Managed Switch Application

Managed PoE Switch 10/100M Instruction:

1. Front board have 33 ports, Provide 24x 10/100Mbps downlink fiber Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports,and 1x

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. Fiber Switch                        1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 24 network cables to connect 24 industrial switch with Ethernet switch's 1~24 fiber port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
