L2 Managed Fast Power Over Ethernet Switch

N-net L2 Managed Fast Power Over Ethernet Switch

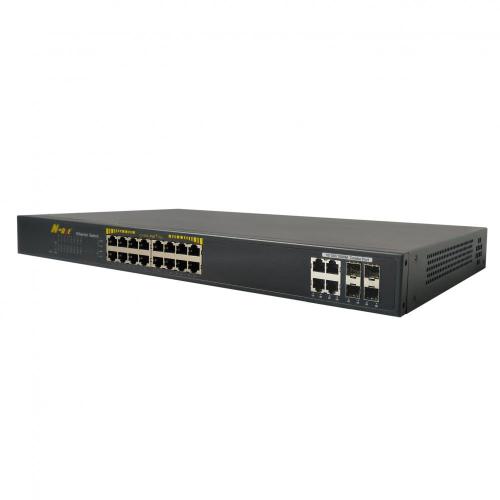

NT-29M16T4GC series poe switch, which is dedicated to the application of video monitoring system and network engineering and design, to provide 16 Fast Ethernet ports and 4 COMBO ports (Gigabit UPLINK port:fiber and Ethernet port is optional). This managed fast ethernet poe switch provides 16 fast Ethernet adaptive RJ45 ports, each RJ45 port supports MDI, MDIX automatic turning and line speed forwarding function. From N-net switches, various sollutions can be offered to you.

Stackable  Managed Fast Ethernet POE Switch Features

1. 16x 10/100Mbps downlink Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports ,or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z,
3. 10/100Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
4. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMP Snooping,
5. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
6. Store-and-forward mechanism is employed to avoid packet loss and error frames
7. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
8. Support IP/Port/Mac binding.
9. Jumbo frames support a maximum of 9.6K kilobtyes
10. Support enhanced management through WEB, CLI, SSH, SNMP.
11. Built-in 1U rack power supply series, easy installation

 Managed Switch Instruction

1. Front board have 24 ports, Provide 16x 10/100Mbps downlink Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. Switch                             1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
