N-net Managed 10/100M Ethernet PoE Switches

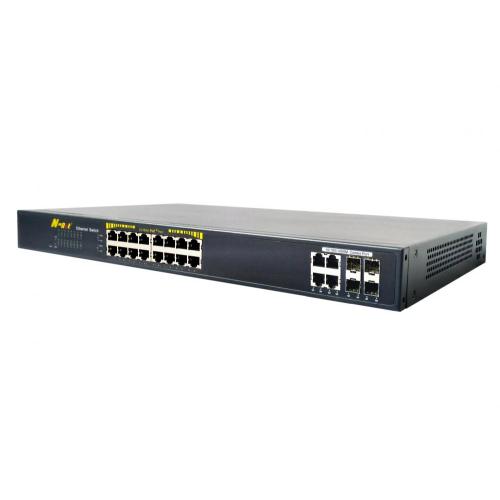

N-net NT-29M16T4GC PoE switch is a managed fast ethernet PoE switch that with PoE chipset. This managed switch is a smart switch that 16 downlink ports are all with power over ethernet capacity--you can easlily find the yellow label around the ethernet ports even we will change your own representative color on the switch.The advantage of this stackable  managed fast ethernet switch is that you are able to control it and release worker.

Managed POE Switch 16 Ports Features

1. 16x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports ,or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
3. Each of 16 ports all support IEEE802.3af/at
4. 10/100Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
5. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
6. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
7. Store-and-forward mechanism is employed to avoid packet loss and error frames
8. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
9. Support IP/Port/Mac binding.
10. Jumbo frames support a maximum of 9.6K kilobtyes
11. Support enhanced management through WEB, CLI, SSH, SNMP.
12. Maximum power per port: 30W
13. Maximum PoE power: 440W (Port 1 to Port 16)
14. Built-in 1U rack power supply series, easy installation

PoE Switch 16 Ports For Cctv Application

PoE Switch 16 Ports Instruction:

1. Front board have 32 ports, Provide 16x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

PoE:    16 green lights indicate that the PoE is power on(Under the RJ45 socket) ;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. PoE Switch                         1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 16 network cables to connect 16 IP cameras with Ethernet switch's 1~16 PoE port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
