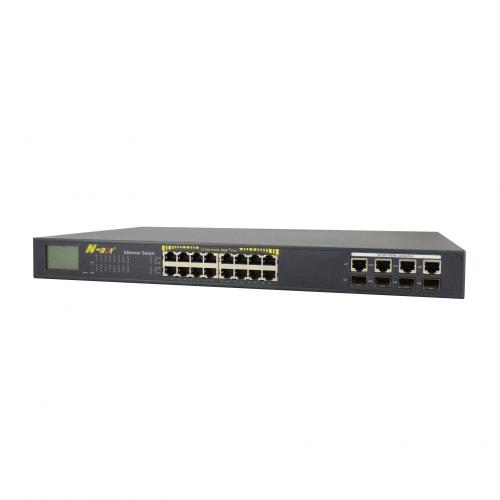

Fast Ethernet PoE Switch With LCD Display

N-net Fast Ethernet PoE Switch With LCD Display

NT-NT-35M16T2GFL-AF16 16 ports PoE switch with LCD screen visual function PoE  switch is dedicated to the application of video monitoring system and network engineering and design to provide 16 10/100Mbps Ethernet PoE ports and 2 gigabit SFP ports. With 300W total power budget and non-blocking data switching performance, N-net managed PoE switch 16 ports can fulfill the demand of sufficient PoE power for HD IP surveillance. It provides a reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks. N-net 10/100M PoE switch with LCD display,which is actually release working time on monitoring and transmission. Through the scolling data on LCD, it's easily to charge the status of your devices at the first time, which can greatly promote management efficiency.

LCD Fast Ethernet POE Switch Features

1. Provide 16 10/100Mbps Ethernet ports and 2 Gigabit SFP ports.
2. Each of 16 ports all support IEEE802.3af/at

3. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.

4. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,

5. 10/100Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices

6. Store-and-forward mechanism is employed to avoid packet loss and error frames

7. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)

8. Support IP/Port/Mac binding.

9. Support enhanced management through WEB, CLI, SSH, SNMP.

10. Various LCD display functions can real-timely display the device`s current working conditions, and help prompt facility and remove trouble easily.(Option)

11. Maximum power per port: 30W

12. Maximum PoE power: 300W (Port 1 to Port 16)

13. Built-in 1U rack power supply series, easy installation

LCD Fast POE Switch Details

Poe Switch 16 Ports Package
