16 Port PoE Managed Gigabit Switch

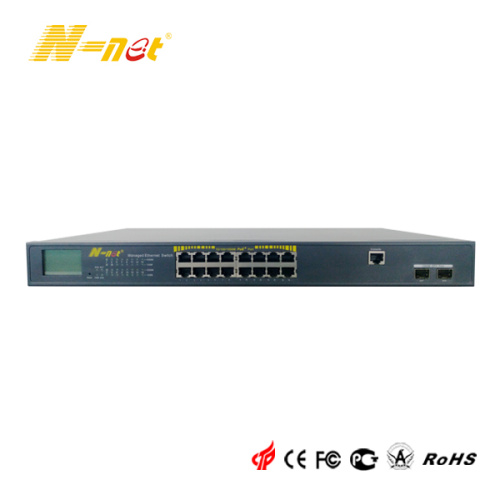

N-net 16 Port PoE Managed Gigabit Switch

NT-35MG16T2GFL-AF16 LCD gigabit poe switch is designed with smart and intuitive LCD screen to control the working status of the device and promote the management effeciency. This PoE switch supports 300-watt PoE budget to drive up to 16 powered devices, with up to 30W of MAX power per port. With 16 gigabit Ethernet PoE ports and 2 gigabit SFP uplink ports, the PoE feature enables this 16 ports PoE switch an efficient and cost-effective solution for SMB, SOHO or other similar fields to deploy the PoE network for the wireless access points, IP-based surveillance cameras or IP phones anywhere easily and efficiently.

 L2 Managed POE Switch Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE 802.1p QoS
3. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
4. Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMPSnooping,
5. DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
6. Store-and-forward mechanism is employed to avoid packet loss and error frames
7. Support spanning tree STP(802.1D) and RSTP(802.1W).
8. G.8032, support <50ms industrial quick ring protection
9. Jumbo frames support a maximum of 9.6K kilobtyes
10. Support cable diagnosis
11. Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
12. 0 ºC To 55 ºC operating temperature to meet a variety of complex environments
13. Copper ports support ESD protection
14. Support PoE power supply up to maximum of 30W per port
15. IEEE 802.3af and 802.3at. Supports per port PoE configuration function

Gigabit Managed POE Switch LCD Display

Poe Switch 16 Ports Package
