Ring redundancy is an Ethernet high-speed redundancy technology.

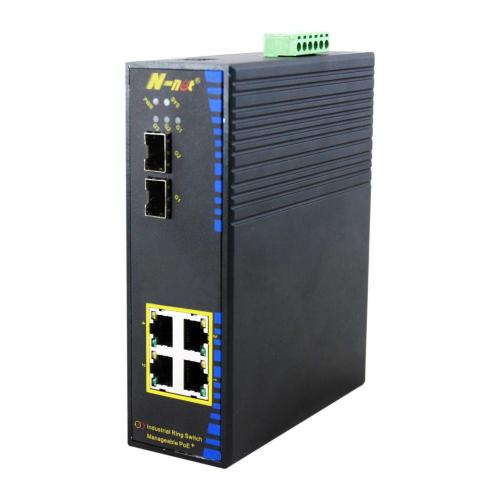

N-NET NT-MIN1042GF is an Industrial Ring Ethernet switch, equipped with 2 1000base-X SFP interface, 4 10/100base-T (X) port.
This technology can not only ensure that the network can recover within 300 milliseconds when it encounters a failure (when it is used in more than 20 switches), but it can also send an alarm through an error relay, indicator or SNMP when the ring link is broken.
Support industrial ring protocol "NT- Ring", 2 Gigabit ports effectively create Gigabit self-recovery ring redundancy (self-recovery time <20ms), protection grade, industrial grade four in accordance with EMC requirements, guide rail type or wall mounted, STP, RSTP protocol.
Once the ring network is disconnected, the indicator will send an alarm on the disconnected switch, activate its status relay, and feed back the error message to the user via SNMP.
this Industrial POE Switch meets the requirements of industrial field for the reliability and practicability of the network system.
A ring network uses a continuous ring to connect each device together.
Its reliable hardware design is especially suitable for industrial communication applications that require continuous operation.
It can ensure that the signal sent by one device can be seen by all other devices on the ring.
Feature:
- 4x 10/100Base-TX (support IEEE802.3af/at standard), 2x 1000Base-x SFP
- This Industrial Ethernet switch Can manage each POE port through web management, and power supply for
- Each POE port up to 15.4W/30W
- This Industrial poe managed switch Support N-NET patent protocol [NT-Ring"(Recover time<20ms), STP RSTP,
- MSTP, Ethernet redundant.
- This Industrial Switch Support SNMPv3, IEEE802.1X, HTTPS and SSH, increase ne2xrk security
- This Industrial Fiber Switch Support Managedmethods of WEB, CLI, Telnet/serial console, Windows utility
- And SNMP, IGMP Snooping and GMRP filter multicast traffic
- 4KV EFT protection and 6KV ESD protection
- MTBF above 100,000hours
- Dual power supply (DC46V~DC54V) for redundancy
- Full aluminum industrial shell cooling design, fanless without
- Thermal via, IP40 protection
- Working temperature -40~+80ºC
- Support din-rail/ desktop /wall mounted
- Lightning protection grade: the power interface adopts level
- 4x of lightning protection design
Specification
|
technical parameter |
Standard:IEEE802.3,IEEE802.3u, IEEE802.3ab ,IEEE802.3x, IEEE802.1D(STP), IEEE802.1w(RSTP),IEEE802.1Q(Vlan Tagging),IEEE802.1p(QoS) Protocol:NT-Ring.IGMP v1/v2.GVRP.SNMP v1/v2/v3 .DHCP Client.TFTP.SMTP.RMON.LLDP.HTTP.SSH.Telnet.SNTP Server/Client,. Flow control:IEEE802.3x(Flow control).Back Pressure |
|
function |
Switch function:NT-Ring.POE+.RSTP.SNMP.QOS.802.1Q VLAN. Port Trunking.Static multicast filtering.Bandwidth management.Broadcast storm.Port traffic statistics.Online upgrade.Upload and download profiles,User name login system, etc. NT-Ring: Support Single, couple, Chain, Dual homing etc. ring network structure. |
|
Interface |
Fast port:1X4 10Base-T/100Base-TX adaptive,RJ45 port. Gigabit port:1X2 1000Base-X SFP fiber port. Rs232 port number:1 RS-232 Control port, baud rate:57600bps |
|
transmission distance |
RJ45:100M(Standard CAT5/CAT5e cable) Multimode fiber:1310nm,2KM single mode fiber:1310nm,20/40/60Km 1550nm,20/40/60/80/100/120Km |
|
Switch attribute |
Fast forwarding speed:0.1488Mpps Gigabit forwarding speed:1.488Mpps Vlan number:256 VLan ID:1~4096 Multicast group number:256 transmission mode:Store and forward. System switching bandwidth:4.8G MAC address table:8K Buffer:1Mbit Frame buffer. |
|
Standard certification |
EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±4kV; Data Port:±2kV IEC61000-4-5(Surge) Power Port: ±2kV/DM, ±4kV/CM; Data Port:±2kV IEC61000-4-6(CS) 3V(10kHz~150kHz);10V(150kHz~80MHz) IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s) Mechanics: IEC60068-2-6, IEC60068-2-27, IEC60068-2-32 Industry: IEC61000-6-2 Railway: EN50155,EN50121-4 Traffic control: NEMA TS-2 |
|
LED indicator light |
System indicator:SYS Interface indicator:The green light is 100M,Off is 10M. Yellow light is light and blink for port link-up status,Transmitting and receiving data,Off is link-down status. |
|
Power Supply |
Input voltage:18~36VDC Input mode:Plug in type 6 core 5.08mm spacing terminal Support redundancy function for dual power supply |
|
work environment |
Operating temperature range:-40~75℃ Storage temperature range:-40~85℃ Outer case:IP40 protection grade, corrugated high strength metal case Installation method: guide rail type. |
