Unmanaged gigabit industrial Ethernet switch MM

Overview

POE (Power Over Ethernet) refers to the existing Ethernet Cat.5 cabling infrastructure without any changes, for some IP-based terminals (such as IP phones, wireless LAN access point AP, network cameras Etc.) While transmitting data signals, the technology that can provide DC power for such devices is a switch that supports Power over Ethernet.

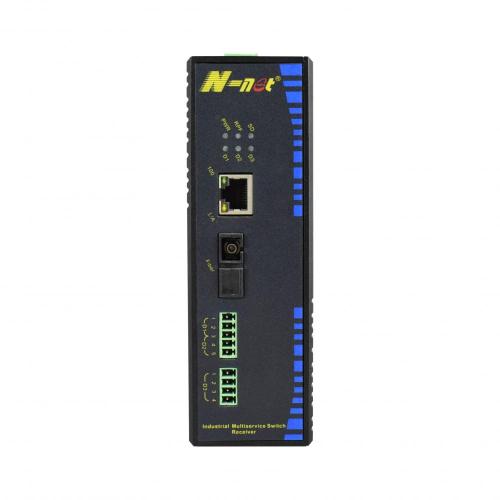

N-net NT-IN311 is Industrial Gigabit Media Converter with 10/100Base-Tx and 100Base Fx.

The POE switch port supports output power up to 15.4W or 30W, which complies with the IEEE802.3af / 802.3at standard. Power is supplied to the standard POE terminal equipment through the network cable, eliminating the need for additional power wiring.

It is ideally suited for connecting Ethernet enabled industrial and security equipment and can be optionally configured with advanced Ethernet communication functions.

Compliant with IEEE802.3atPOE switch, the output power of the port can reach 30W, and the power available to the powered device is 25.4W.

N-net NT-IN311 Industrial Media Converter supports up to 4000 MAC addresses and uses advanced IEEE 802.3 Fast Ethernet 10/100BaseTX switching technology to eliminate network collisions and increase network determinism. A high-speed processor and backplane provide outstanding throughput performance.

In layman's terms, a POE switch is a switch that supports network cable power supply. It can not only realize the data transmission function of a common switch but also supply power to network terminals at the same time.

N-net NT-IN311 Industrial Media Converter requires no setup unless the advanced port functions are utilized. The sixteen 10/100BaseTX ports are auto sensing and auto configuring. Each port automatically negotiates for maximum speed and performance by default. Bi-color LEDs are provided to display the link status, link speed and activity of each port as well as power on/off status.

Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets

2. Standard:IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control, IEEE802.3at PSE

3. 10/100/1000Base-TX can automatically identify the direct-line(MDI) and cross-line(MDIX), is compatible with Various cards, switches, HUB and other Ethernet devices

4. This Industrial Gigabit Media Converter Unmanaged gigabit industrial Ethernet switch MM applies store-and-forward mechanism to avoid packet loss and error frames

5. Support wire-speed transmission and full-duplex flow control / half-duplex back pressure mode

6. Jumbo frames support a maximum of 1536 bytes

7. 12V to 52V DC or 24V AC Wide power input, redundant power and reverse polarity protection

8. -40 to 80 ℃ operating temperature to meet a variety of complex environments

9. IP40 protection standard for housing

10. Power port and Ethernet port supports ESD protection and EFT protection

11. DIN rail and panel mounting for easy installation.

12. Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users
