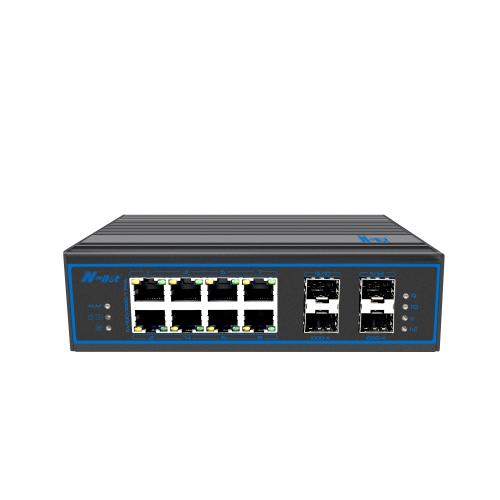

12-port full gigabit managed Industrial None-PoE switch
Your message must be between 20 to 2000 characters
Contact NowOverview
The switch uses existing cables, repeaters, hubs, and workstation network cards, without the need for high-level hardware upgrades; the switch is transparent to the workstation, which has low management overhead and simplifies the addition of network nodes, movement, and network change operations.
NIE8082GM is a 10-port full gigabit industrial managed switch that supports up to 8*10/100/1000M downlink ports, 2* 1000M SFP ports. 8*10/100/1000M ports support, conforming to IEEE 802.3af/at standard.
Broadly speaking, there are two types of network switches: WAN switches and LAN switches.
It supports L2 managment, such as QoS, VLAN, MSTP, Multi-brocast and ports management.
WAN switches are mainly used in the field of telecommunications, providing a basic platform for communication.
It supports 6KV surge protection, 8KV contact/15KV air ESD protection.
Local area network switches are used in local area networks to connect terminal devices such as PCs and network printers.
It supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions.
It can be divided into Ethernet switches, Fast Ethernet switches, Gigabit Ethernet switches, FDDI switches, ATM switches and Token Ring switches in terms of transmission media and transmission speed.
Features
With 8*10/100/1000M downlink ports, 2*1000M SFP ports, with L2 network management;
Support L2 managment, such as QoS, VLAN, MSTP, Multi-brocast, ports management;
6KV surge protection, 8KV contact /15KV air ESD protection;
Support working temperature -40℃~75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 12~60V |
|
Consumption |
Self consumption<20W |
|
Downlink ports |
Ports 1~2 10/100/1000Base-T RJ45(IEEE802.3bt,also support IEEE 802.3af/at) 3~8 10/100/1000Base-T RJ45(IEEE 802.3af/at) |
|
Uplink ports |
Ports 9~10 1000M SFP slots |
|
Cable and distance |
Use cat5e/6,100m max |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
20Gbps |
|
Though put |
14.88Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 2 *red ; Uplink 9~10: green LEDs indicate Link/Act Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165 mm×115 mm×50mm |
|
Material |
Aluminium |
|
Color |
Black |
|
Net-weight |
500g |
