Unmanaged Industrial gigabit Ethernet Switch SM 20KM

Overview

Multimode fiber optic transceivers

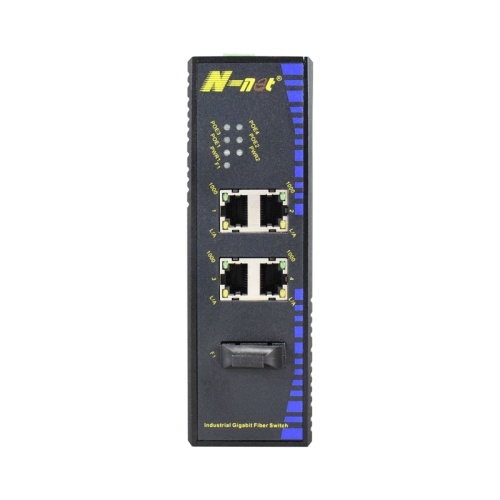

N-net NT-IN314S-20 is an Industrial Gigabit Ethernet Switch with 4-port 10/100/1000BASE-TX  ports and one port 1000Base-FX.

Dual-fiber multi-mode high-performance 10 / 100Mbit adaptive optical fiber transceiver (photoelectric converter), with address filtering, network segmentation and intelligent alarm functions, which can improve network efficiency and network operation reliability.

 Rigorous industrial design makes its stability, practicality with basic protection, making it to flexible enough to Ethernet expansion in harsh industrial environments.

It can realize high-speed remote interconnection of up to 5 kilometers without relay computer data network. The product performance is stable and reliable, the design conforms to the Ethernet standard, and has anti-lightning protection measures.

N-net NT-IN314S-20 Industrial Gigabit Ethernet Switch enable a simple network setup in a Plug&Play manner. Therefore many end users decide to change from field bus based automation to modern Ethernet based technology.

It is especially suitable for various broadband data networks such as telecommunications, cable TV, railways, military, financial securities, customs, civil aviation, maritime transportation, power, water conservancy and oil fields, as well as areas requiring high reliability data transmission or the establishment of a dedicated IP data transmission network.

Furthermore this migration gives significant cost savings for investment and operation of the network.

 It is the most ideal application equipment for broadband campus network, broadband cable TV network and intelligent broadband community fiber-to-the-building and fiber-to-the-home.

In principle Gigabit Ethernet is ideal to provide the required bandwidth and to transmit real time data for automation in shortest time. Reason beside the high bandwidth is that the latency time for forwarding the data packets is much lower.

Features

1.Built-in efficient switching core to implement flow control and reduce broadcast packets

2.Support Agreement:IEEE802.3 10Base-T.IEEE802.3u 100Base-TX/FX.IEEE802.3ab 1000Base-T. IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow Control. IEEE802.3at PSE

3.10/100/1000Base-TX can automatically identify the direct line and cross-line, is compatible with Various cards, switches, HUB and other Ethernet devices

4.It uses a store-and-forward mechanism to avoid packet loss and error frames

5.Support full-duplex flow control / half-duplex back pressure mode

6.Jumbo frames support a maximum of 9k bytes

7.12V to 48V DC or 24V AC Wide power input, redundant power and reverse polarity protection

11.-40 To 80℃ operating temperature to meet a variety of complex environments

12.IP40 protection standard housing

13.Power port and Ethernet port supports ESD protection and EFT protection

14.DIN rail and panel mounting for efficient usage

15.Support Dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection, expanded the needs of users

16.12 GBPS back plane bandwidth, 1 k MAC address automatic learning and 1 MB internal cache for data buffer

17.Support POE power supply up to 25.5W(optional)

Certification

Application

Packaging
