7 ports full gigabit Industrial PoE Switch
Your message must be between 20 to 2000 characters
Contact NowOverview

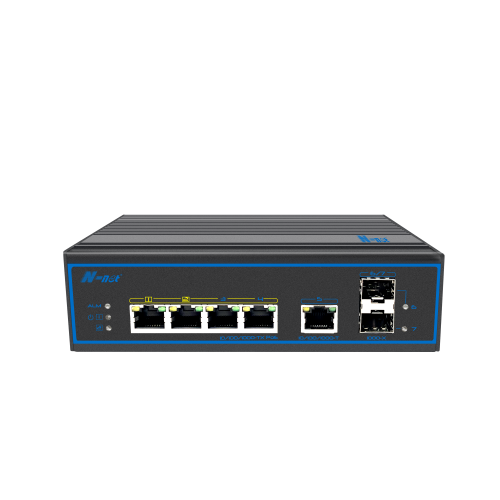

The NIE8052PG it is a 7-port, full gigabit industrial PoE switch that supports up to 4 *10/100/1000M PoE downlink ports, 1*10/100/1000M uplink ports and 2*1000M SFP ports. 4*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard.
It provides two modes, Default and VLAN, adapt to various complex environments. At the same time, support PoE auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
It has the characteristics of reliable work, strong and durable, high performance and so on. It can be used in security network video monitoring system, network engineering and other occasions.
Features
- With 4*10/100/1000M PoE downlink ports,1*10/100/1000M uplink ports, and 2*1000M SFP ports, and supports 2 port PoE power each up to 90W, 2 port PoE power each up to 30W ;
- Provides two modes of Default and VLAN to adapt to various complex environments;
- Support PoE auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports` output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering ;
- Support 6KV surge protection, 8KV contact / 15KV air ESD protection ;
- Support relay alarm for power off, network broken, PoE off ;
- Support working temperature -40℃~75℃.
Specifications
|
Parameter |
Specifications |
|
Power supply |
Powered by power adaptor |
|
Range of voltage |
DC 48~57V |
|
Consumption |
Self consumption<5W |
|
Downlink ports |
Ports 1~4 10/100/1000Base-TX PoE RJ45(2 ports 90W, 2 ports 30W) |
|
Uplink ports |
5 10/100/1000 Base-TX; Ports 6~7 1000 SFP slots |
|
PoE Auto-check |
If detect the frozen PD device, restart it |
|
Working mode |
Default mode: normal switch mode. VLAN mode: ports 1 ~ 4 are isolated from each other and can only communicate with the upper port; restrain the network storm; turn off the flow control. |
|
Cable and distance |
Use cat5e/6,100m max(Extend mode max.250m) |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
|
Switch fabric |
14Gbps |
|
Though put |
10.42Mpps |
|
Buffer |
1M |
|
MAC address table |
8K |
|
Indicator |
Power: 1 *red ; Uplink6~7: On RJ45 On RJ45 green LEDs indicate Link/Act; port 5 yellow and green LEDs indicate Link/Act Downlink 1~4: On RJ45 green LEDs indicate Link/Act , yellow LEDs indicate PoE |
|
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact / 15KV: air,standard:IEC61000-4-2 |
|
Working temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity |
0~95%(No condensation) |
|
Dimension(L×W×H) |
165mm×115 mm×50mm |
|
Material |
Metal |
|
Colour |
Black |
|
Net-weight |
500g |
